SUN HYDRAULICS
DCCBDHN
$184.36 USD
- SUN HYDRAULICS
- Material:DCCBDHN
- Model:DCCB-DHN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCBDHN (DCCBDHN) is a high-performance, two-position, detented 4-way directional cartridge valve designed for rigorous hydraulic applications. This model, which fits the T61A cavity and belongs to Series 1, offers a substantial flow capacity ranging from 10 to 13 gpm (40 to 50 L/min). It operates at a maximum pressure of 5000 psi (350 bar), which is consistent across all ports including the x and y pilot ports (port 5 and port 6). The DCCBDHN features a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, vital for maintaining efficiency and longevity in demanding environments. This valve incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Leakage per path is meticulously detailed in the technical specifications, with maximum valve leakage at 110 SUS (24 cSt) being capped at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Furthermore, this model is equipped with a pilot volume displacement of .05 in\u00b3 (0.82 cc), and requires an installation torque between 30-35 lbf ft (41-47 Nm). The hex size for the valve measures .875 inches (22.2 mm), and it weighs approximately .40 lbs (0.20 kg). For maintenance or repairs, a Viton seal kit designated as part number 990061006 is recommended. Designed for versatility in application within hydraulic systems requiring reliable directional control and robust construction, the DCCBDHN excels in both direct acting and pilot operated configurations depending on system requirements. This makes it an adaptable solution suitable for varied hydraulic tasks where precision and durability are paramount.
The Sun Hydraulics DCCBDHN (DCCBDHN) is a high-performance, two-position, detented 4-way directional cartridge valve designed for rigorous hydraulic applications. This model, which fits the T61A cavity and belongs to Series 1, offers a substantial flow capacity ranging from 10 to 13 gpm (40 to 50 L/min). It operates at a maximum pressure of 5000 psi (350 bar), which is consistent across all ports including the x and y pilot ports (port 5 and port 6). The DCCBDHN features a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, vital for maintaining efficiency and longevity in demanding environments. This valve incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Leakage per path is meticulously detailed in the technical specifications, with maximum valve leakage at 110 SUS (24 cSt) being capped at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Furthermore, this model is equipped with a pilot volume displacement of .05 in\u00b3 (0.82 cc), and requires an installation torque between 30-35 lbf ft (41-47 Nm). The hex size for the valve measures .875 inches (22.2 mm), and it weighs approximately .40 lbs (0.20 kg). For maintenance or repairs, a Viton seal kit designated as part number 990061006 is recommended. Designed for versatility in application within hydraulic systems requiring reliable directional control and robust construction, the DCCBDHN excels in both direct acting and pilot operated configurations depending on system requirements. This makes it an adaptable solution suitable for varied hydraulic tasks where precision and durability are paramount.

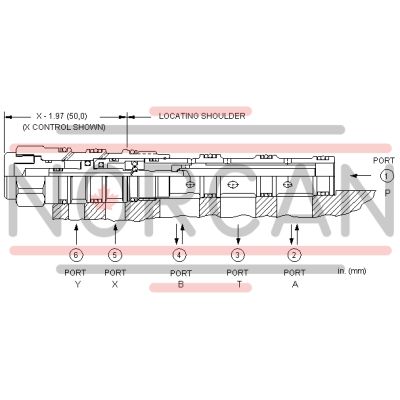

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 10 - 13 gpm40 - 50 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
