SUN HYDRAULICS
DCCCXAN
$157.66 USD
- SUN HYDRAULICS
- Material:DCCCXAN
- Model:DCCC-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXAN (DCCCXAN) is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including X and Y pilot ports (port 5 and port 6). This model is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports. The valve's function and capacity vary depending on the spool type chosen, which also affects its susceptibility to flow forces\u2014forces that resist the opening of a passage due to flow and pressure drop. The DCCCXAN is engineered for durability and performance with a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. It incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model offers a flow capacity range of 7-10 gpm (28-40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve. Additional specifications include a maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), pilot volume displacement of .02 in\u00b3 (0.33 cc), and a valve hex size of 7/8 in. (22.2 mm). The installation torque for this model is specified at 30-35 lbf-ft (41-47 Nm), with the unit weighing approximately .40 lb (0.20 kg). The seal kit for this cartridge uses Viton material, enhancing its resistance to various environmental factors.
The Sun Hydraulics DCCCXAN (DCCCXAN) is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports, including X and Y pilot ports (port 5 and port 6). This model is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports. The valve's function and capacity vary depending on the spool type chosen, which also affects its susceptibility to flow forces\u2014forces that resist the opening of a passage due to flow and pressure drop. The DCCCXAN is engineered for durability and performance with a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. It incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model offers a flow capacity range of 7-10 gpm (28-40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve. Additional specifications include a maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), pilot volume displacement of .02 in\u00b3 (0.33 cc), and a valve hex size of 7/8 in. (22.2 mm). The installation torque for this model is specified at 30-35 lbf-ft (41-47 Nm), with the unit weighing approximately .40 lb (0.20 kg). The seal kit for this cartridge uses Viton material, enhancing its resistance to various environmental factors.

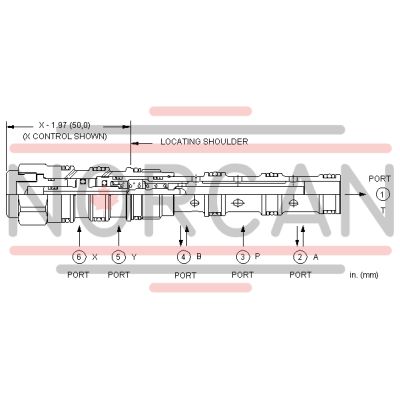

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
