SUN HYDRAULICS
DCCCXBV
$168.57 USD
- SUN HYDRAULICS
- Material:DCCCXBV
- Model:DCCC-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXBV (DCCCXBV) is a high-performance hydraulic valve designed for versatile fluid control in demanding applications. This three-position, 4-way directional cartridge valve is spring-centered and features a 6-port configuration, making it suitable for complex hydraulic circuits requiring precise direction of flow. The valve operates with a maximum pressure capacity of 5000 psi (350 bar) across all ports, including the pilot ports (port 5 and port 6), ensuring robust performance under high-pressure conditions. The DCCCXBV model offers flexibility through various spool options which dictate the valve's capacity and are crucial for achieving desired flow characteristics. Spool configurations are particularly sensitive to flow forces, which can impact valve shifting if they exceed the spring force meant to center the spool, especially under conditions of high flow and pressure drop. The design incorporates hardened spool and sleeve components to enhance durability and maintain low leakage rates, crucial for maintaining system efficiency and performance. This model also features Sun's floating style construction which minimizes risks associated with internal parts binding due to installation issues or cavity/cartridge machining variations. It supports a flow rate capacity between 7 to 10 gpm (28 to 40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve effectively. Additional technical specifications include a maximum leakage rate at specific conditions, pilot volume displacement specifics, as well as installation torque requirements, providing comprehensive data necessary for correct application and maintenance. The DCCCXBV is an ideal solution for systems requiring reliable and precise control over hydraulic fluid direction under varying pressures and flows.
The Sun Hydraulics DCCCXBV (DCCCXBV) is a high-performance hydraulic valve designed for versatile fluid control in demanding applications. This three-position, 4-way directional cartridge valve is spring-centered and features a 6-port configuration, making it suitable for complex hydraulic circuits requiring precise direction of flow. The valve operates with a maximum pressure capacity of 5000 psi (350 bar) across all ports, including the pilot ports (port 5 and port 6), ensuring robust performance under high-pressure conditions. The DCCCXBV model offers flexibility through various spool options which dictate the valve's capacity and are crucial for achieving desired flow characteristics. Spool configurations are particularly sensitive to flow forces, which can impact valve shifting if they exceed the spring force meant to center the spool, especially under conditions of high flow and pressure drop. The design incorporates hardened spool and sleeve components to enhance durability and maintain low leakage rates, crucial for maintaining system efficiency and performance. This model also features Sun's floating style construction which minimizes risks associated with internal parts binding due to installation issues or cavity/cartridge machining variations. It supports a flow rate capacity between 7 to 10 gpm (28 to 40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve effectively. Additional technical specifications include a maximum leakage rate at specific conditions, pilot volume displacement specifics, as well as installation torque requirements, providing comprehensive data necessary for correct application and maintenance. The DCCCXBV is an ideal solution for systems requiring reliable and precise control over hydraulic fluid direction under varying pressures and flows.

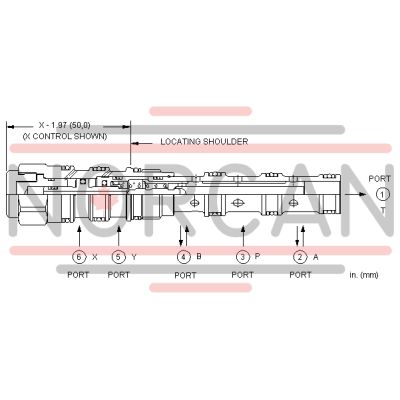

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
