SUN HYDRAULICS
DCCCXCN
$152.69 USD
- SUN HYDRAULICS
- Material:DCCCXCN
- Model:DCCC-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXCN (DCCCXCN) is a three-position, 4-way directional cartridge valve that is spring-centered and features a 6-port configuration. This valve can be tailored with various spool options to suit specific application needs, where the selection of the spool type directly influences the valve's capacity. It operates efficiently under a maximum pressure of 5000 psi (350 bar), including its x and y pilot ports (port 5 and port 6). The pilot ports are designed to be positively sealed from the work ports, enhancing the system's reliability and preventing leakage between these interfaces. The DCCCXCN is constructed with a hardened spool and sleeve which not only ensures minimal leakage rates but also provides excellent wear characteristics, maintaining consistent performance over time. This model incorporates Sun\u2019s floating style construction which helps in minimizing internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This valve has a flow capacity ranging between 7 to 10 gpm (28 to 40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift. It is designed for ease of installation with a specified hex size of 7/8 inches (22.2 mm) and an installation torque requirement between 30-35 lbf\u00b7ft (41-47 Nm). The model weighs approximately 0.40 lb (0.20 kg), making it compact yet robust for various hydraulic applications. Additionally, it uses Viton seals (990061006) ensuring high-quality sealing capabilities suitable for diverse operating environments within its specifications.
The Sun Hydraulics DCCCXCN (DCCCXCN) is a three-position, 4-way directional cartridge valve that is spring-centered and features a 6-port configuration. This valve can be tailored with various spool options to suit specific application needs, where the selection of the spool type directly influences the valve's capacity. It operates efficiently under a maximum pressure of 5000 psi (350 bar), including its x and y pilot ports (port 5 and port 6). The pilot ports are designed to be positively sealed from the work ports, enhancing the system's reliability and preventing leakage between these interfaces. The DCCCXCN is constructed with a hardened spool and sleeve which not only ensures minimal leakage rates but also provides excellent wear characteristics, maintaining consistent performance over time. This model incorporates Sun\u2019s floating style construction which helps in minimizing internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This valve has a flow capacity ranging between 7 to 10 gpm (28 to 40 L/min) and requires a minimum pilot pressure of 175 psi (12 bar) to shift. It is designed for ease of installation with a specified hex size of 7/8 inches (22.2 mm) and an installation torque requirement between 30-35 lbf\u00b7ft (41-47 Nm). The model weighs approximately 0.40 lb (0.20 kg), making it compact yet robust for various hydraulic applications. Additionally, it uses Viton seals (990061006) ensuring high-quality sealing capabilities suitable for diverse operating environments within its specifications.

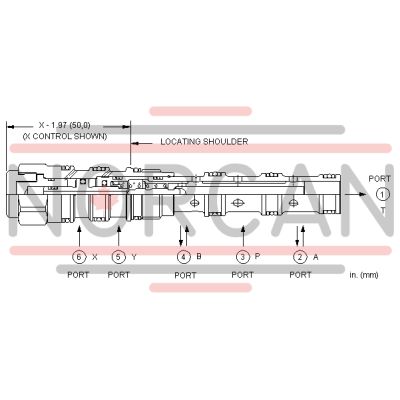

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
