SUN HYDRAULICS
DCCCXFN
$157.66 USD
- SUN HYDRAULICS
- Material:DCCCXFN
- Model:DCCC-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXFN (DCCCXFN) is a three-position, 4-way directional cartridge valve, characterized by its spring-centered design and six-port configuration. This pilot-to-shift valve offers versatile performance with a variety of spool options that dictate its capacity, primarily influenced by flow forces related to flow and pressure drop. Each of the ports, including the x and y pilot ports (port 5 and port 6), can withstand pressures up to 5000 psi (350 bar). The model is designed for a flow capacity between 7 to 10 gpm (28 to 40 L/min), with a minimum pilot pressure requirement of 175 psi (12 bar) necessary for valve shifting. The DCCCXFN features hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing its durability and reliability in operation. It also incorporates Sun\u2019s floating style construction which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining. This model is specifically designed for T61A cavity series 1 configurations. Additional specifications include a maximum operating pressure of 5000 psi (350 bar), maximum valve leakage at about 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and a pilot volume displacement of approximately .02 in\u00b3 (0.33 cc). The valve\u2019s hex size is measured at 7/8 inches (22.2 mm) with an installation torque ranging from 30 to 35 lbf\u00b7ft (41 to 47 Nm). The overall weight of the model is modest at .40 lb (0.20 kg). For maintenance or repairs, a Viton seal kit compatible with this model is available under part number: 990061006.
The Sun Hydraulics DCCCXFN (DCCCXFN) is a three-position, 4-way directional cartridge valve, characterized by its spring-centered design and six-port configuration. This pilot-to-shift valve offers versatile performance with a variety of spool options that dictate its capacity, primarily influenced by flow forces related to flow and pressure drop. Each of the ports, including the x and y pilot ports (port 5 and port 6), can withstand pressures up to 5000 psi (350 bar). The model is designed for a flow capacity between 7 to 10 gpm (28 to 40 L/min), with a minimum pilot pressure requirement of 175 psi (12 bar) necessary for valve shifting. The DCCCXFN features hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing its durability and reliability in operation. It also incorporates Sun\u2019s floating style construction which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining. This model is specifically designed for T61A cavity series 1 configurations. Additional specifications include a maximum operating pressure of 5000 psi (350 bar), maximum valve leakage at about 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and a pilot volume displacement of approximately .02 in\u00b3 (0.33 cc). The valve\u2019s hex size is measured at 7/8 inches (22.2 mm) with an installation torque ranging from 30 to 35 lbf\u00b7ft (41 to 47 Nm). The overall weight of the model is modest at .40 lb (0.20 kg). For maintenance or repairs, a Viton seal kit compatible with this model is available under part number: 990061006.

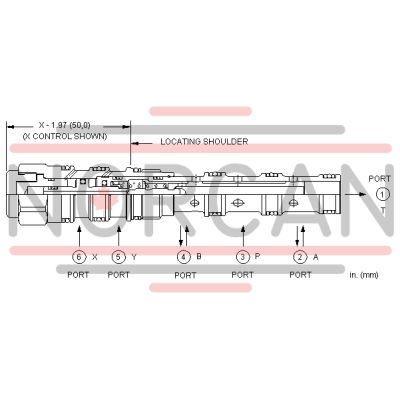

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
