SUN HYDRAULICS
DCCCXFV
$168.57 USD
- SUN HYDRAULICS
- Material:DCCCXFV
- Model:DCCC-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXFV (DCCCXFV) is a versatile and robust directional control valve designed for high-pressure hydraulic systems. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including pilot ports (port 5 and port 6) which are positively sealed from the work ports to prevent leakage. Each port can withstand pressures up to 5000 psi (350 bar), making it suitable for a wide range of demanding applications. The valve's performance varies depending on the spool type chosen, as different spool configurations affect flow forces, which in turn influence the valve's shifting capability under different flow and pressure conditions. The hardened spool and sleeve enhance durability and maintain low leakage rates, ensuring reliable operation with excellent wear characteristics. Additionally, the DCCCXFV incorporates Sun's floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of 7-10 gpm (28-40 L/min), a minimum pilot pressure requirement of 175 psi (12 bar) for shifting the valve, and maximum leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The valve also features a hex size of 7/8 in. (22.2 mm) and requires an installation torque of 30-35 lbf\u00b7ft (41-47 Nm). Its lightweight design weighs only about 0.40 lb (0.20 kg), facilitating easier handling and installation. For maintenance or repairs, a Viton seal kit is available under part number: 990061006.
The Sun Hydraulics DCCCXFV (DCCCXFV) is a versatile and robust directional control valve designed for high-pressure hydraulic systems. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including pilot ports (port 5 and port 6) which are positively sealed from the work ports to prevent leakage. Each port can withstand pressures up to 5000 psi (350 bar), making it suitable for a wide range of demanding applications. The valve's performance varies depending on the spool type chosen, as different spool configurations affect flow forces, which in turn influence the valve's shifting capability under different flow and pressure conditions. The hardened spool and sleeve enhance durability and maintain low leakage rates, ensuring reliable operation with excellent wear characteristics. Additionally, the DCCCXFV incorporates Sun's floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of 7-10 gpm (28-40 L/min), a minimum pilot pressure requirement of 175 psi (12 bar) for shifting the valve, and maximum leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The valve also features a hex size of 7/8 in. (22.2 mm) and requires an installation torque of 30-35 lbf\u00b7ft (41-47 Nm). Its lightweight design weighs only about 0.40 lb (0.20 kg), facilitating easier handling and installation. For maintenance or repairs, a Viton seal kit is available under part number: 990061006.

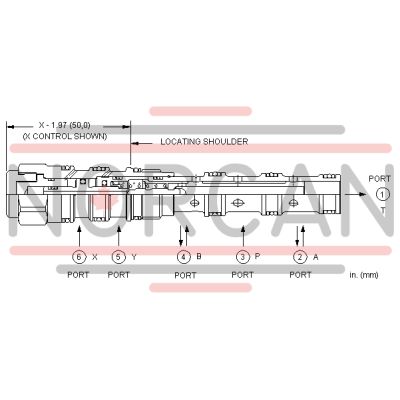

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
