SUN HYDRAULICS
DCCCXTN
$161.63 USD
- SUN HYDRAULICS
- Material:DCCCXTN
- Model:DCCC-XTN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXTN (DCCCXTN) is a three-position, 4-way directional cartridge valve that is spring-centered and features a 6-port directional control. This model can be configured with various spool options to meet specific application requirements, where the supply port is identified as port 3. Each port, including the x and y pilot ports (port 5 and port 6), can withstand up to 5000 psi or 350 bar. The performance capabilities of this valve are influenced by flow forces, which are dependent on the flow rate and pressure drop across the valve. These forces generally resist the opening of passages, especially in spool configurations that open as they return to center. The DCCCXTN valve has a maximum flow capacity ranging from 7 to 10 gpm (28 to 40 L/min), and it requires a minimum pilot pressure of 175 psi (12 bar) for shifting. The maximum operating pressure for this model is consistently high at 5000 psi (350 bar). Leakage per path is documented in its technical specifications, ensuring transparency in performance metrics. Designed with durability and reliability in mind, the DCCCXTN features hardened spool and sleeve components which provide low leakage rates and superior wear characteristics. Additionally, this model incorporates Sun's floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. This valve's compact design includes a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 - 35 lbf.ft (41 - 47 Nm). It weighs approximately .40 lb (0.20 kg), making it suitable for various hydraulic applications where space and weight are considerations. The seal kit for this cartridge uses Viton material, ensuring robust sealing under varied conditions.
The Sun Hydraulics DCCCXTN (DCCCXTN) is a three-position, 4-way directional cartridge valve that is spring-centered and features a 6-port directional control. This model can be configured with various spool options to meet specific application requirements, where the supply port is identified as port 3. Each port, including the x and y pilot ports (port 5 and port 6), can withstand up to 5000 psi or 350 bar. The performance capabilities of this valve are influenced by flow forces, which are dependent on the flow rate and pressure drop across the valve. These forces generally resist the opening of passages, especially in spool configurations that open as they return to center. The DCCCXTN valve has a maximum flow capacity ranging from 7 to 10 gpm (28 to 40 L/min), and it requires a minimum pilot pressure of 175 psi (12 bar) for shifting. The maximum operating pressure for this model is consistently high at 5000 psi (350 bar). Leakage per path is documented in its technical specifications, ensuring transparency in performance metrics. Designed with durability and reliability in mind, the DCCCXTN features hardened spool and sleeve components which provide low leakage rates and superior wear characteristics. Additionally, this model incorporates Sun's floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. This valve's compact design includes a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 - 35 lbf.ft (41 - 47 Nm). It weighs approximately .40 lb (0.20 kg), making it suitable for various hydraulic applications where space and weight are considerations. The seal kit for this cartridge uses Viton material, ensuring robust sealing under varied conditions.

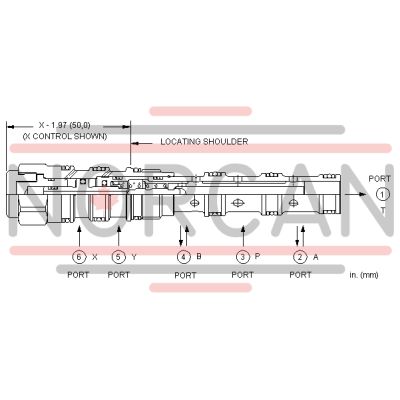

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
