SUN HYDRAULICS
DCCCXWV
$172.55 USD
- SUN HYDRAULICS
- Material:DCCCXWV
- Model:DCCC-XWV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXWV (DCCCXWV) is a versatile and robust hydraulic control valve designed for high-pressure applications. This three-position, 4-way directional cartridge is spring-centered and features six ports, including pilot ports (port 5 and port 6) that are positively sealed from the work ports. Each port can withstand pressures up to 5000 psi (350 bar), making it suitable for a wide range of hydraulic systems. The valve\u2019s capacity varies depending on the spool type selected, accommodating flows from 7 to 10 gpm (28 to 40 L/min). The DCCCXWV utilizes a hardened spool and sleeve to ensure low leakage rates and superior wear characteristics, which is critical in maintaining efficiency and prolonging the valve's lifespan in demanding environments. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding, a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve effectively and can handle maximum operating pressures of up to 5000 psi (350 bar). The maximum valve leakage at specific conditions is quantified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring reliable performance even under high-pressure differentials. Installation specifications include a valve hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The model weighs approximately 0.40 lb (0.20 kg), making it compact yet resilient for various hydraulic applications.
The Sun Hydraulics DCCCXWV (DCCCXWV) is a versatile and robust hydraulic control valve designed for high-pressure applications. This three-position, 4-way directional cartridge is spring-centered and features six ports, including pilot ports (port 5 and port 6) that are positively sealed from the work ports. Each port can withstand pressures up to 5000 psi (350 bar), making it suitable for a wide range of hydraulic systems. The valve\u2019s capacity varies depending on the spool type selected, accommodating flows from 7 to 10 gpm (28 to 40 L/min). The DCCCXWV utilizes a hardened spool and sleeve to ensure low leakage rates and superior wear characteristics, which is critical in maintaining efficiency and prolonging the valve's lifespan in demanding environments. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding, a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve effectively and can handle maximum operating pressures of up to 5000 psi (350 bar). The maximum valve leakage at specific conditions is quantified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring reliable performance even under high-pressure differentials. Installation specifications include a valve hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The model weighs approximately 0.40 lb (0.20 kg), making it compact yet resilient for various hydraulic applications.

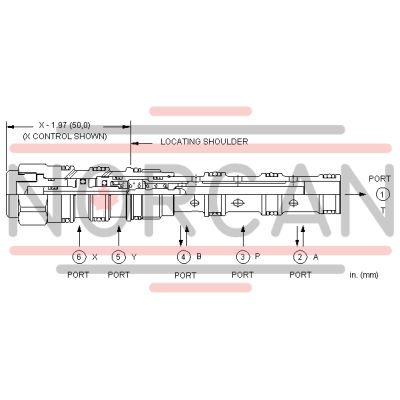

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
