SUN HYDRAULICS
DCCCXYV
$163.61 USD
- SUN HYDRAULICS
- Material:DCCCXYV
- Model:DCCC-XYV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCCXYV (DCCCXYV) is a three-position, 4-way directional cartridge valve characterized by its spring-centered mechanism and 6-port configuration. This pilot-to-shift valve offers a variety of spool options that dictate its capacity, which ranges from 7 to 10 gpm (28 to 40 L/min). It is designed to handle a maximum operating pressure of 5000 psi (350 bar), with all ports including the X and Y pilot ports (ports 5 and 6) capable of accommodating this pressure level. These pilot ports are positively sealed from the work ports, ensuring efficient operation. The DCCCXYV features a hardened spool and sleeve that enhance durability and maintain low leakage rates, crucial for consistent performance. The advanced design incorporates Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring reliable operation under varying conditions. Leakage specifications for the DCCCXYV indicate a maximum of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), per path. This valve also has specific installation requirements, with a recommended torque of 30-35 lbf\u00b7ft (41-47 Nm) and utilizes a hex size of 7/8 in. (22.2 mm). The overall weight of the model is modest at approximately .40 lb (0.20 kg). For maintenance or replacements, it uses Viton seals available in the seal kit Cartridge Viton: 990061006. The DCCCXYV is an exemplary choice for applications requiring precise control over hydraulic flow and direction within robust operational parameters.
The Sun Hydraulics DCCCXYV (DCCCXYV) is a three-position, 4-way directional cartridge valve characterized by its spring-centered mechanism and 6-port configuration. This pilot-to-shift valve offers a variety of spool options that dictate its capacity, which ranges from 7 to 10 gpm (28 to 40 L/min). It is designed to handle a maximum operating pressure of 5000 psi (350 bar), with all ports including the X and Y pilot ports (ports 5 and 6) capable of accommodating this pressure level. These pilot ports are positively sealed from the work ports, ensuring efficient operation. The DCCCXYV features a hardened spool and sleeve that enhance durability and maintain low leakage rates, crucial for consistent performance. The advanced design incorporates Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve, ensuring reliable operation under varying conditions. Leakage specifications for the DCCCXYV indicate a maximum of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), per path. This valve also has specific installation requirements, with a recommended torque of 30-35 lbf\u00b7ft (41-47 Nm) and utilizes a hex size of 7/8 in. (22.2 mm). The overall weight of the model is modest at approximately .40 lb (0.20 kg). For maintenance or replacements, it uses Viton seals available in the seal kit Cartridge Viton: 990061006. The DCCCXYV is an exemplary choice for applications requiring precise control over hydraulic flow and direction within robust operational parameters.

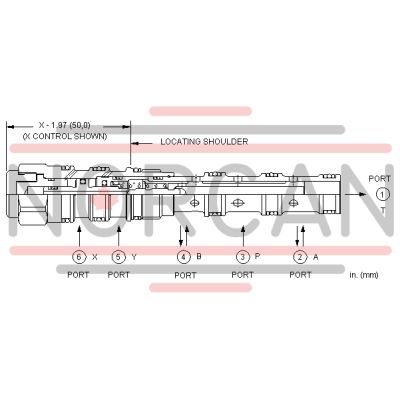

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
