SUN HYDRAULICS
DCCDXCN
$152.69 USD
- SUN HYDRAULICS
- Material:DCCDXCN
- Model:DCCD-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCDXCN (DCCDXCN) is a robust and versatile hydraulic control valve designed for high-pressure applications. This two-position, detented, 4-way directional cartridge valve features a unique 6-port configuration, capable of handling pressures up to 5000 psi (350 bar). Suitable for a variety of fluid power applications, the DCCDXCN offers three spool options that determine the capacity of the valve, ranging from 10 to 13 gpm (40 to 50 L/min). This model is specifically engineered with hardened spool and sleeve to ensure low leakage rates and exceptional wear characteristics. It also incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Each path's leakage specifications are meticulously detailed in the technical data, ensuring reliable performance in demanding operational conditions. The DCCDXCN utilizes Viton seals for enhanced durability and chemical resistance, making it suitable for various hydraulic fluids. The pilot ports (5 and 6) are positively sealed from the work ports to prevent cross-contamination and ensure efficient operation. The minimum pilot pressure required to shift the valve is noted at 175 psi (12 bar), which facilitates responsive control under different flow demands. Installation is facilitated by a standard T61A cavity and a hex size of 7/8 in. (22.2 mm), with recommended installation torque between 30-35 lbf ft (41-47 Nm). The compact design weighs only about 0.40 lb (0.20 kg), allowing for easy integration into existing hydraulic systems without significant modifications. Overall, the Sun Hydraulics DCCDXCN valve is engineered to provide reliable performance and precise control in high-pressure hydraulic systems across various applications.
The Sun Hydraulics DCCDXCN (DCCDXCN) is a robust and versatile hydraulic control valve designed for high-pressure applications. This two-position, detented, 4-way directional cartridge valve features a unique 6-port configuration, capable of handling pressures up to 5000 psi (350 bar). Suitable for a variety of fluid power applications, the DCCDXCN offers three spool options that determine the capacity of the valve, ranging from 10 to 13 gpm (40 to 50 L/min). This model is specifically engineered with hardened spool and sleeve to ensure low leakage rates and exceptional wear characteristics. It also incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Each path's leakage specifications are meticulously detailed in the technical data, ensuring reliable performance in demanding operational conditions. The DCCDXCN utilizes Viton seals for enhanced durability and chemical resistance, making it suitable for various hydraulic fluids. The pilot ports (5 and 6) are positively sealed from the work ports to prevent cross-contamination and ensure efficient operation. The minimum pilot pressure required to shift the valve is noted at 175 psi (12 bar), which facilitates responsive control under different flow demands. Installation is facilitated by a standard T61A cavity and a hex size of 7/8 in. (22.2 mm), with recommended installation torque between 30-35 lbf ft (41-47 Nm). The compact design weighs only about 0.40 lb (0.20 kg), allowing for easy integration into existing hydraulic systems without significant modifications. Overall, the Sun Hydraulics DCCDXCN valve is engineered to provide reliable performance and precise control in high-pressure hydraulic systems across various applications.

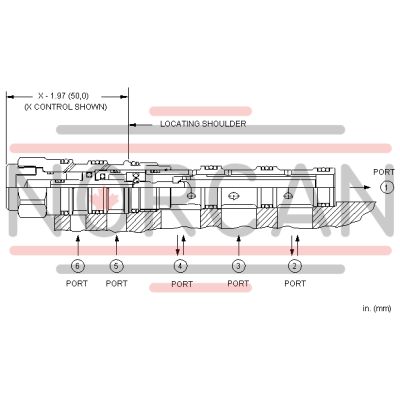

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 10 - 13 gpm40 - 50 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
