The Sun Hydraulics DCCDXHN (DCCDXHN) is a two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model features a 6-port configuration that can be adapted with up to three different spool options, enhancing its versatility in various operational setups. The valve operates with a maximum capacity of 10-13 gpm (40-50 L/min), depending on the spool type used, and supports a maximum operating pressure of 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6). Each port on the DCCDXHN is capable of handling the high pressure of up to 5000 psi, ensuring reliability under demanding conditions. The minimum pilot pressure required to shift the valve is set at 175 psi (12 bar), which facilitates easier control and integration into hydraulic circuits. The model is engineered with a hardened spool and sleeve which not only reduce leakage rates but also offer superior wear characteristics, thereby extending the lifespan of the component. Sun Hydraulics has incorporated their floating style construction into this model, significantly minimizing internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance and operational reliability. The DCCDXHN also comes with a seal kit option using Viton materials for enhanced durability against fluid corrosiveness and temperature variations. With an installation torque requirement between 30-35 lbf ft (41-47 Nm) and weighing just .40 lb (0.20 kg), this valve combines ease of installation with lightweight construction, making it an efficient choice for dynamic hydraulic systems requiring precise fluid control.
The Sun Hydraulics DCCDXHN (DCCDXHN) is a two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model features a 6-port configuration that can be adapted with up to three different spool options, enhancing its versatility in various operational setups. The valve operates with a maximum capacity of 10-13 gpm (40-50 L/min), depending on the spool type used, and supports a maximum operating pressure of 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6). Each port on the DCCDXHN is capable of handling the high pressure of up to 5000 psi, ensuring reliability under demanding conditions. The minimum pilot pressure required to shift the valve is set at 175 psi (12 bar), which facilitates easier control and integration into hydraulic circuits. The model is engineered with a hardened spool and sleeve which not only reduce leakage rates but also offer superior wear characteristics, thereby extending the lifespan of the component. Sun Hydraulics has incorporated their floating style construction into this model, significantly minimizing internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance and operational reliability. The DCCDXHN also comes with a seal kit option using Viton materials for enhanced durability against fluid corrosiveness and temperature variations. With an installation torque requirement between 30-35 lbf ft (41-47 Nm) and weighing just .40 lb (0.20 kg), this valve combines ease of installation with lightweight construction, making it an efficient choice for dynamic hydraulic systems requiring precise fluid control.

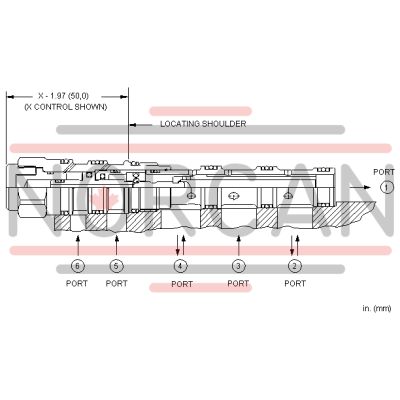

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 10 - 13 gpm40 - 50 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
