SUN HYDRAULICS
DCCDXHV
$172.55 USD
- SUN HYDRAULICS
- Material:DCCDXHV
- Model:DCCD-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCDXHV (DCCDXHV) is a high-performance hydraulic valve designed for robust and precise fluid control in various applications. This two-position, detented, 4-way directional cartridge valve features a unique construction with six ports that can handle pressures up to 5000 psi (350 bar), including the X and Y pilot ports (ports 5 and 6). The valve operates within a flow capacity range of 10 to 13 gpm (40 to 50 L/min), making it suitable for medium-flow applications. Constructed with a hardened spool and sleeve, the DCCDXHV ensures low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in demanding operational environments. The incorporation of Sun's floating style construction minimizes internal parts binding, which could arise from excessive installation torque or variations in cavity/cartridge machining. This design feature aids in maintaining consistent performance even under variable installation conditions. The valve requires a minimum pilot pressure of 175 psi (12 bar) to shift effectively and has a maximum operating pressure limit of 5000 psi (350 bar). Leakage specifications indicate a maximum of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring efficient operation with minimal fluid loss. Additional technical specifications include a pilot volume displacement of approximately 0.05 in\u00b3 (0.82 cc), making it effective for systems requiring precise control over smaller fluid volumes. Designed for ease of installation, the DCCDXHV has a hex size of 7/8 inches (22.2 mm) and an installation torque requirement between 30 to 35 lbf\u00b7ft (41 to 47 Nm). Weighing just about 0.40 lb (0.20 kg), this model is relatively lightweight, facilitating easier handling and integration into various hydraulic systems without adding significant weight or complexity.
The Sun Hydraulics DCCDXHV (DCCDXHV) is a high-performance hydraulic valve designed for robust and precise fluid control in various applications. This two-position, detented, 4-way directional cartridge valve features a unique construction with six ports that can handle pressures up to 5000 psi (350 bar), including the X and Y pilot ports (ports 5 and 6). The valve operates within a flow capacity range of 10 to 13 gpm (40 to 50 L/min), making it suitable for medium-flow applications. Constructed with a hardened spool and sleeve, the DCCDXHV ensures low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in demanding operational environments. The incorporation of Sun's floating style construction minimizes internal parts binding, which could arise from excessive installation torque or variations in cavity/cartridge machining. This design feature aids in maintaining consistent performance even under variable installation conditions. The valve requires a minimum pilot pressure of 175 psi (12 bar) to shift effectively and has a maximum operating pressure limit of 5000 psi (350 bar). Leakage specifications indicate a maximum of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring efficient operation with minimal fluid loss. Additional technical specifications include a pilot volume displacement of approximately 0.05 in\u00b3 (0.82 cc), making it effective for systems requiring precise control over smaller fluid volumes. Designed for ease of installation, the DCCDXHV has a hex size of 7/8 inches (22.2 mm) and an installation torque requirement between 30 to 35 lbf\u00b7ft (41 to 47 Nm). Weighing just about 0.40 lb (0.20 kg), this model is relatively lightweight, facilitating easier handling and integration into various hydraulic systems without adding significant weight or complexity.

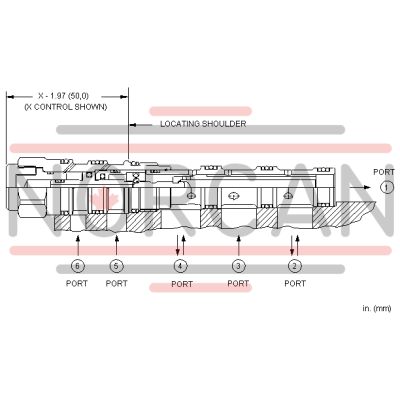

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 10 - 13 gpm40 - 50 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
