SUN HYDRAULICS
DCCDXTN
$161.63 USD
- SUN HYDRAULICS
- Material:DCCDXTN
- Model:DCCD-XTN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCDXTN (DCCDXTN) is a two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. This model features a 6-port directional control that can be customized with up to three different spool options depending on the application requirements. It is engineered to handle a maximum operating pressure of 5000 psi (350 bar), making it suitable for various demanding hydraulic applications. The DCCDXTN valve offers a flow capacity ranging from 10 to 13 gpm (40 to 50 L/min), accommodating substantial fluid movement within hydraulic circuits. Each port, including the pilot ports (port 5 and port 6), supports the valve's high-pressure capability. The minimum pilot pressure required to shift this valve is specified at 175 psi (12 bar), ensuring responsive operation under varied conditions. Key features include hardened spool and sleeve components that provide low spool leakage rates and enhanced wear characteristics, crucial for maintaining efficiency and longevity in harsh environments. Additionally, this model incorporates Sun's floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This model also ensures limited leakage per path at a maximum rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which is critical for maintaining system integrity and performance. Installation specifications include a hex size of 7/8 in. (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). The overall weight of the DCCDXTN model is modest at .40 lb (0.20 kg), facilitating easier handling and integration into existing systems without significant modifications.
The Sun Hydraulics DCCDXTN (DCCDXTN) is a two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. This model features a 6-port directional control that can be customized with up to three different spool options depending on the application requirements. It is engineered to handle a maximum operating pressure of 5000 psi (350 bar), making it suitable for various demanding hydraulic applications. The DCCDXTN valve offers a flow capacity ranging from 10 to 13 gpm (40 to 50 L/min), accommodating substantial fluid movement within hydraulic circuits. Each port, including the pilot ports (port 5 and port 6), supports the valve's high-pressure capability. The minimum pilot pressure required to shift this valve is specified at 175 psi (12 bar), ensuring responsive operation under varied conditions. Key features include hardened spool and sleeve components that provide low spool leakage rates and enhanced wear characteristics, crucial for maintaining efficiency and longevity in harsh environments. Additionally, this model incorporates Sun's floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This model also ensures limited leakage per path at a maximum rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which is critical for maintaining system integrity and performance. Installation specifications include a hex size of 7/8 in. (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). The overall weight of the DCCDXTN model is modest at .40 lb (0.20 kg), facilitating easier handling and integration into existing systems without significant modifications.

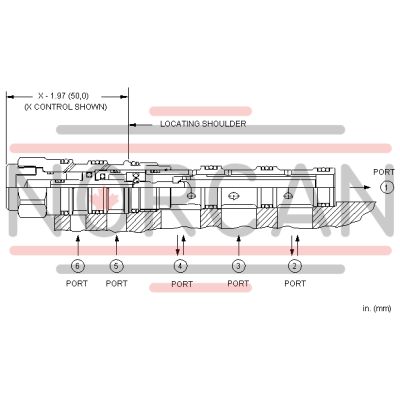

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 10 - 13 gpm40 - 50 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
