SUN HYDRAULICS
DCCDXTV
$172.55 USD
- SUN HYDRAULICS
- Material:DCCDXTV
- Model:DCCD-XTV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCDXTV (DCCDXTV) is a robust, two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. With a maximum operating pressure of 5000 psi (350 bar), this valve features a T61A cavity and is part of the Series 1 lineup from Sun Hydraulics. The DCCDXTV can handle flow rates between 10 to 13 gpm (40 to 50 L/min), making it suitable for a variety of hydraulic applications. This valve is engineered with hardened spool and sleeve to ensure low leakage rates and superior wear characteristics, essential for maintaining efficiency and longevity in demanding environments. The design incorporates Sun's floating style construction which helps prevent internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Each path of the DCCDXTV has a specified leakage rate detailed in its technical data, ensuring predictable performance. The pilot ports (port 5 and port 6) are positively sealed from the work ports, enhancing the operational integrity of the system. For shifting the valve, a minimum pilot pressure of 175 psi (12 bar) is required. Additionally, this model has specific installation requirements including a valve hex size of 7/8 inches (22.2 mm) and an installation torque ranging between 30 -35 lbf ft (41 -47 Nm). The model itself weighs approximately 0.40 lb (0.20 kg), and utilizes Viton seals for enhanced durability under various conditions. With these specifications, the DCCDXTV provides reliable performance for hydraulic systems requiring precise control over fluid direction and flow.
The Sun Hydraulics DCCDXTV (DCCDXTV) is a robust, two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. With a maximum operating pressure of 5000 psi (350 bar), this valve features a T61A cavity and is part of the Series 1 lineup from Sun Hydraulics. The DCCDXTV can handle flow rates between 10 to 13 gpm (40 to 50 L/min), making it suitable for a variety of hydraulic applications. This valve is engineered with hardened spool and sleeve to ensure low leakage rates and superior wear characteristics, essential for maintaining efficiency and longevity in demanding environments. The design incorporates Sun's floating style construction which helps prevent internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Each path of the DCCDXTV has a specified leakage rate detailed in its technical data, ensuring predictable performance. The pilot ports (port 5 and port 6) are positively sealed from the work ports, enhancing the operational integrity of the system. For shifting the valve, a minimum pilot pressure of 175 psi (12 bar) is required. Additionally, this model has specific installation requirements including a valve hex size of 7/8 inches (22.2 mm) and an installation torque ranging between 30 -35 lbf ft (41 -47 Nm). The model itself weighs approximately 0.40 lb (0.20 kg), and utilizes Viton seals for enhanced durability under various conditions. With these specifications, the DCCDXTV provides reliable performance for hydraulic systems requiring precise control over fluid direction and flow.

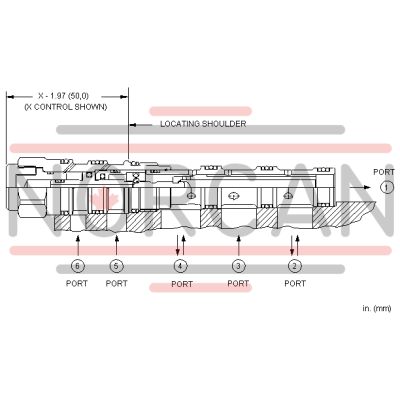

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 10 - 13 gpm40 - 50 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
