SUN HYDRAULICS
DCDADNN
$250.58 USD
- SUN HYDRAULICS
- Material:DCDADNN
- Model:DCDA-DNN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDADNN (DCDADNN) is a versatile hydraulic valve specifically designed for high-pressure applications. This three-position, 4-way directional cartridge valve features spring-centered operation and includes six ports, all capable of accommodating pressures up to 5000 psi (350 bar). The DCDADNN offers a choice of 10 different spool options, allowing customization based on specific application needs. It functions efficiently with a flow capacity ranging between 11 to 30 gpm (38 to 120 L/min), making it suitable for a broad range of hydraulic systems. Key features of the DCDADNN include hardened spool and sleeve which enhance durability and reduce leakage, maintaining consistent performance even under rigorous conditions. The valve also incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design detail ensures reliable operation and extends the lifespan of the component. With a maximum valve leakage rate specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar) and pilot volume displacement of approximately .06 in\u00b3 (0.98 cc), the DCDADNN demonstrates precision control in fluid handling. It requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve, ensuring responsive and stable control across various operational scenarios. Additionally, the model is relatively lightweight at just .80 lb (0.35 kg), facilitating easy installation with recommended torque settings between 45\u201350 lbf\u00b7ft (61\u201368 Nm). The Sun Hydraulics DCDADNN is engineered for applications requiring robust performance, precise control, and high durability, making it an ideal choice for sophisticated hydraulic systems demanding reliable directional control and efficient fluid handling capabilities.
The Sun Hydraulics DCDADNN (DCDADNN) is a versatile hydraulic valve specifically designed for high-pressure applications. This three-position, 4-way directional cartridge valve features spring-centered operation and includes six ports, all capable of accommodating pressures up to 5000 psi (350 bar). The DCDADNN offers a choice of 10 different spool options, allowing customization based on specific application needs. It functions efficiently with a flow capacity ranging between 11 to 30 gpm (38 to 120 L/min), making it suitable for a broad range of hydraulic systems. Key features of the DCDADNN include hardened spool and sleeve which enhance durability and reduce leakage, maintaining consistent performance even under rigorous conditions. The valve also incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design detail ensures reliable operation and extends the lifespan of the component. With a maximum valve leakage rate specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar) and pilot volume displacement of approximately .06 in\u00b3 (0.98 cc), the DCDADNN demonstrates precision control in fluid handling. It requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve, ensuring responsive and stable control across various operational scenarios. Additionally, the model is relatively lightweight at just .80 lb (0.35 kg), facilitating easy installation with recommended torque settings between 45\u201350 lbf\u00b7ft (61\u201368 Nm). The Sun Hydraulics DCDADNN is engineered for applications requiring robust performance, precise control, and high durability, making it an ideal choice for sophisticated hydraulic systems demanding reliable directional control and efficient fluid handling capabilities.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

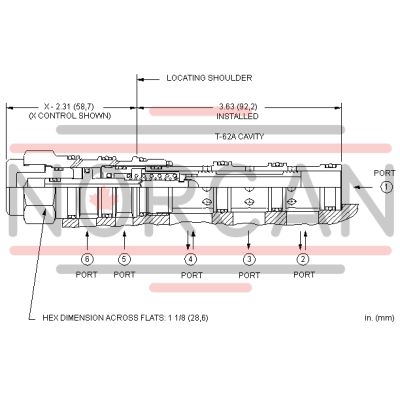

| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
