SUN HYDRAULICS
DCDADTN
$254.55 USD
- SUN HYDRAULICS
- Material:DCDADTN
- Model:DCDA-DTN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDADTN (DCDADTN) is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports. This model stands out for its versatility, offering a choice of 10 different spool options to suit various application needs. Each port on this valve, including the x and y pilot ports (port 5 and port 6), can handle pressures up to 5000 psi (350 bar). The performance of the DCDADTN largely depends on the type of spool selected, with capacities ranging from 11 to 30 gpm (38 to 120 L/min). This valve is engineered for durability and consistent operation, incorporating a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. Additionally, it features Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar), with a maximum valve leakage at 110 SUS (24 cSt) being only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The minimum pilot pressure required to shift the valve is set at 150 psi (10.5 bar). For installation, the valve has a hex size of 1-1/8 inch (28.6 mm) and requires an installation torque between 45 -50 lbf-ft (61 -68 Nm). The model weighs approximately .80 lb (.35 kg), making it compact yet robust for various hydraulic applications. The DCDADTN utilizes Viton seals for enhanced performance under varying conditions, ensuring reliability and longevity in demanding operational environments. This model is ideal for systems requiring precise control over fluid direction and pressure within a broad range of industrial applications.
The Sun Hydraulics DCDADTN (DCDADTN) is a three-position, 4-way directional cartridge valve that is spring-centered and features six ports. This model stands out for its versatility, offering a choice of 10 different spool options to suit various application needs. Each port on this valve, including the x and y pilot ports (port 5 and port 6), can handle pressures up to 5000 psi (350 bar). The performance of the DCDADTN largely depends on the type of spool selected, with capacities ranging from 11 to 30 gpm (38 to 120 L/min). This valve is engineered for durability and consistent operation, incorporating a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. Additionally, it features Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar), with a maximum valve leakage at 110 SUS (24 cSt) being only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The minimum pilot pressure required to shift the valve is set at 150 psi (10.5 bar). For installation, the valve has a hex size of 1-1/8 inch (28.6 mm) and requires an installation torque between 45 -50 lbf-ft (61 -68 Nm). The model weighs approximately .80 lb (.35 kg), making it compact yet robust for various hydraulic applications. The DCDADTN utilizes Viton seals for enhanced performance under varying conditions, ensuring reliability and longevity in demanding operational environments. This model is ideal for systems requiring precise control over fluid direction and pressure within a broad range of industrial applications.

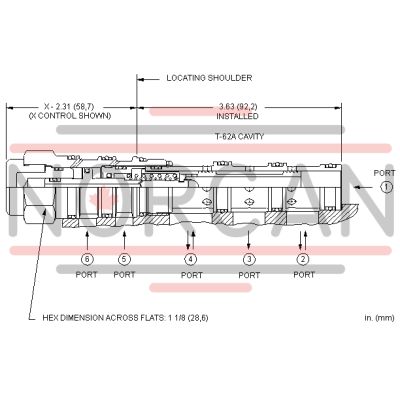

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
