SUN HYDRAULICS
DCDADYN
$245.62 USD
- SUN HYDRAULICS
- Material:DCDADYN
- Model:DCDA-DYN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDADYN (DCDADYN) is a versatile hydraulic component suitable for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including the x and y pilot ports (ports 5 and 6), which can all handle pressures up to 5000 psi (350 bar). The valve offers a range of configurations with 10 different spool options available, allowing users to tailor its functionality according to specific requirements. Engineered for reliability and performance, the DCDADYN incorporates Sun's floating style construction. This design minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining, ensuring smooth operation and longevity. The hardened spool and sleeve enhance the valve\u2019s durability by providing low leakage rates and exceptional wear characteristics. With a flow capacity ranging between 11 to 30 gpm (38 to 120 L/min), this valve accommodates various fluid dynamics requirements. It requires a minimum pilot pressure of 150 psi (10.5 bar) to shift, ensuring responsive operation under different conditions. The maximum operating pressure for the DCDADYN remains consistent at 5000 psi (350 bar), with a maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical specifications include a pilot volume displacement of .06 in\u00b3 (0.98 cc), a hex size of 1-1/8 inches (28.6 mm), an installation torque between 45-50 lbf\u00b7ft (61-68 Nm), and a model weight of .80 lb (0.35 kg). The seal kit for this cartridge uses Viton material, part number: 990062006, ensuring effective sealing against fluid leaks.
The Sun Hydraulics DCDADYN (DCDADYN) is a versatile hydraulic component suitable for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, including the x and y pilot ports (ports 5 and 6), which can all handle pressures up to 5000 psi (350 bar). The valve offers a range of configurations with 10 different spool options available, allowing users to tailor its functionality according to specific requirements. Engineered for reliability and performance, the DCDADYN incorporates Sun's floating style construction. This design minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining, ensuring smooth operation and longevity. The hardened spool and sleeve enhance the valve\u2019s durability by providing low leakage rates and exceptional wear characteristics. With a flow capacity ranging between 11 to 30 gpm (38 to 120 L/min), this valve accommodates various fluid dynamics requirements. It requires a minimum pilot pressure of 150 psi (10.5 bar) to shift, ensuring responsive operation under different conditions. The maximum operating pressure for the DCDADYN remains consistent at 5000 psi (350 bar), with a maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical specifications include a pilot volume displacement of .06 in\u00b3 (0.98 cc), a hex size of 1-1/8 inches (28.6 mm), an installation torque between 45-50 lbf\u00b7ft (61-68 Nm), and a model weight of .80 lb (0.35 kg). The seal kit for this cartridge uses Viton material, part number: 990062006, ensuring effective sealing against fluid leaks.

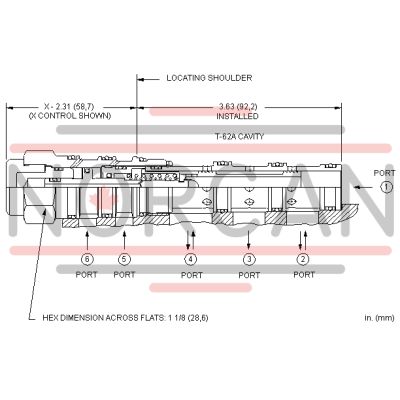

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
