SUN HYDRAULICS
DCDAXAV
$258.52 USD
- SUN HYDRAULICS
- Material:DCDAXAV
- Model:DCDA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDAXAV (DCDAXAV) is a three-position, 4-way directional cartridge valve, designed for advanced hydraulic systems requiring reliable control. This model features a spring-centered mechanism and includes six ports, with the supply port designated as port 1. Each port can withstand pressures up to 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6). The DCDAXAV offers a variety of spool options\u2014ten in total\u2014allowing for flexible configurations tailored to specific operational requirements. The valve's capacity ranges from 11 to 30 gpm (38 to 120 L/min), depending on the spool type chosen. It requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve effectively. The maximum operating pressure for this model is consistent across all configurations at 5000 psi (350 bar). Notably, the valve maintains a maximum leakage rate of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring efficient performance and minimal fluid loss. Constructed with hardened spool and sleeve, the DCDAXAV boasts low leakage rates and superior wear characteristics, enhancing its durability and consistent operation over time. Sun Hydraulics has incorporated their floating style construction into this model, which helps prevent internal parts from binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This valve measures approximately .80 lb (0.35 kg) in weight, with an installation torque requirement between 45 \u2013 50 lbf\u00b7ft (61 \u2013 68 Nm) and utilizes a hex size of 1-1/8 inches (28.6 mm). The recommended seal kit for this cartridge is Viton:990062006, ensuring optimal performance under various operating conditions.
The Sun Hydraulics DCDAXAV (DCDAXAV) is a three-position, 4-way directional cartridge valve, designed for advanced hydraulic systems requiring reliable control. This model features a spring-centered mechanism and includes six ports, with the supply port designated as port 1. Each port can withstand pressures up to 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6). The DCDAXAV offers a variety of spool options\u2014ten in total\u2014allowing for flexible configurations tailored to specific operational requirements. The valve's capacity ranges from 11 to 30 gpm (38 to 120 L/min), depending on the spool type chosen. It requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve effectively. The maximum operating pressure for this model is consistent across all configurations at 5000 psi (350 bar). Notably, the valve maintains a maximum leakage rate of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring efficient performance and minimal fluid loss. Constructed with hardened spool and sleeve, the DCDAXAV boasts low leakage rates and superior wear characteristics, enhancing its durability and consistent operation over time. Sun Hydraulics has incorporated their floating style construction into this model, which helps prevent internal parts from binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This valve measures approximately .80 lb (0.35 kg) in weight, with an installation torque requirement between 45 \u2013 50 lbf\u00b7ft (61 \u2013 68 Nm) and utilizes a hex size of 1-1/8 inches (28.6 mm). The recommended seal kit for this cartridge is Viton:990062006, ensuring optimal performance under various operating conditions.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |

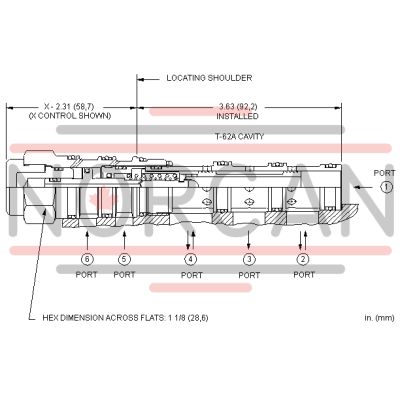

| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
