SUN HYDRAULICS
DCDAXBN
$247.61 USD
- SUN HYDRAULICS
- Material:DCDAXBN
- Model:DCDA-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDAXBN (DCDAXBN) is a robust three-position, 4-way directional cartridge valve, characterized by its spring-centered design and six-port configuration. This valve can be tailored to specific requirements through a selection of 10 different spool options, ensuring versatility across various applications. The unit is designed to handle a maximum operating pressure of 5000 psi (350 bar), including the x and y pilot ports (ports 5 and 6), which makes it suitable for high-pressure systems. The DCDAXBN features hardened spool and sleeve components that not only reduce leakage rates but also enhance wear characteristics, contributing to the valve's longevity and reliability. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. Key specifications include a flow capacity range of 11 to 30 gpm (38 to 120 L/min), with a minimum pilot pressure requirement of 150 psi (10.5 bar) necessary to shift the valve. The maximum valve leakage at operational conditions is rated at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). For installation, the valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 to 50 lbf\u00b7ft (61 to 68 Nm). The model\u2019s weight is approximately .80 lb (0.35 kg). This hydraulic control solution is ideal for applications needing precise control over fluid handling and direction within hydraulic systems, providing both flexibility in configuration and assurance in performance through its durable design elements.
The Sun Hydraulics DCDAXBN (DCDAXBN) is a robust three-position, 4-way directional cartridge valve, characterized by its spring-centered design and six-port configuration. This valve can be tailored to specific requirements through a selection of 10 different spool options, ensuring versatility across various applications. The unit is designed to handle a maximum operating pressure of 5000 psi (350 bar), including the x and y pilot ports (ports 5 and 6), which makes it suitable for high-pressure systems. The DCDAXBN features hardened spool and sleeve components that not only reduce leakage rates but also enhance wear characteristics, contributing to the valve's longevity and reliability. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. Key specifications include a flow capacity range of 11 to 30 gpm (38 to 120 L/min), with a minimum pilot pressure requirement of 150 psi (10.5 bar) necessary to shift the valve. The maximum valve leakage at operational conditions is rated at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). For installation, the valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 to 50 lbf\u00b7ft (61 to 68 Nm). The model\u2019s weight is approximately .80 lb (0.35 kg). This hydraulic control solution is ideal for applications needing precise control over fluid handling and direction within hydraulic systems, providing both flexibility in configuration and assurance in performance through its durable design elements.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

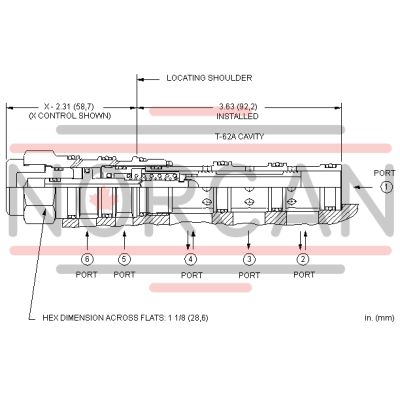

| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
