SUN HYDRAULICS
DCDAXGN
$247.61 USD
- SUN HYDRAULICS
- Material:DCDAXGN
- Model:DCDA-XGN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDAXGN (DCDAXGN) is a high-performance, three-position, 4-way directional cartridge valve that boasts a range of configurable options to suit various hydraulic system requirements. The valve operates with a spring-centered mechanism and includes six ports capable of handling up to 5000 psi (350 bar). Each port, including the x and y pilot ports (ports 5 and 6), can accommodate this maximum pressure, enhancing the valve\u2019s versatility in different hydraulic setups. The DCDAXGN model offers an array of spool options\u201410 in total\u2014allowing users to tailor the valve\u2019s function according to specific flow needs. The spools and sleeves are hardened, minimizing leakage and ensuring durability through consistent low spool leakage rates and excellent wear characteristics. This model is designed using Sun's floating style construction which helps prevent internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Key technical specifications include a fluid capacity ranging from 11 to 30 gpm (38 to 120 L/min) and a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting. The maximum operating pressure remains steady at 5000 psi (350 bar). Leakage specifications are detailed at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring efficient operation with minimal fluid loss. Additional features like a pilot volume displacement of .06 in\u00b3 (0.98 cc), valve hex size of 1-1/8 inch (28.6 mm), and an installation torque between 45-50 lbf-ft (61-68 Nm) highlight the precision engineering behind this model. The DCDAXGN weighs approximately .80 lb (0.35 kg), making it robust yet manageable for various installations.
The Sun Hydraulics DCDAXGN (DCDAXGN) is a high-performance, three-position, 4-way directional cartridge valve that boasts a range of configurable options to suit various hydraulic system requirements. The valve operates with a spring-centered mechanism and includes six ports capable of handling up to 5000 psi (350 bar). Each port, including the x and y pilot ports (ports 5 and 6), can accommodate this maximum pressure, enhancing the valve\u2019s versatility in different hydraulic setups. The DCDAXGN model offers an array of spool options\u201410 in total\u2014allowing users to tailor the valve\u2019s function according to specific flow needs. The spools and sleeves are hardened, minimizing leakage and ensuring durability through consistent low spool leakage rates and excellent wear characteristics. This model is designed using Sun's floating style construction which helps prevent internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Key technical specifications include a fluid capacity ranging from 11 to 30 gpm (38 to 120 L/min) and a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting. The maximum operating pressure remains steady at 5000 psi (350 bar). Leakage specifications are detailed at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), ensuring efficient operation with minimal fluid loss. Additional features like a pilot volume displacement of .06 in\u00b3 (0.98 cc), valve hex size of 1-1/8 inch (28.6 mm), and an installation torque between 45-50 lbf-ft (61-68 Nm) highlight the precision engineering behind this model. The DCDAXGN weighs approximately .80 lb (0.35 kg), making it robust yet manageable for various installations.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

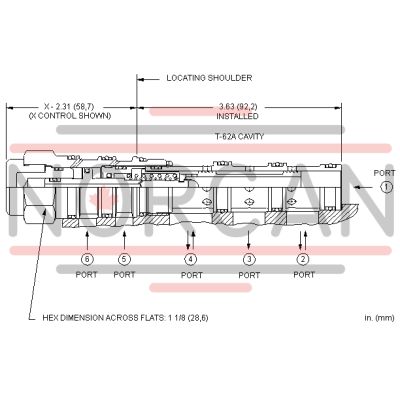

| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
