SUN HYDRAULICS
DCDAXHV
$262.49 USD
- SUN HYDRAULICS
- Material:DCDAXHV
- Model:DCDA-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDAXHV (DCDAXHV) is a three-position, 4-way directional cartridge valve with spring-centered control and a six-port configuration. This valve offers versatility through its 10 different spool options, allowing customization based on specific application needs. Each port, including the x and y pilot ports (port 5 and port 6), can handle up to 5000 psi (350 bar), making it suitable for high-pressure systems. The DCDAXHV features hardened spool and sleeve for reduced leakage and enhanced wear characteristics, ensuring long-term performance reliability. It also employs Sun's floating style construction which helps prevent internal parts from binding due to installation torque or variations in cavity/cartridge machining. This design enhances the overall durability and operational smoothness of the valve. Key specifications include a flow capacity ranging from 11 to 30 gpm (38 to 120 L/min), with a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting. The maximum operating pressure for this model is consistent at 5000 psi (350 bar). Leakage rates are minimal, stated at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical details include a pilot volume displacement of .06 in\u00b3 (0.98 cc), a valve hex size of 1-1/8 in. (28.6 mm), and an installation torque between 45 -50 lbf\u00b7ft (61 -68 Nm). The model weighs approximately .80 lb (0.35 kg). The DCDAXHV is well-suited for applications requiring precise control over fluid direction and pressure within hydraulic systems, providing both robust performance and reliability in demanding operational conditions.
The Sun Hydraulics DCDAXHV (DCDAXHV) is a three-position, 4-way directional cartridge valve with spring-centered control and a six-port configuration. This valve offers versatility through its 10 different spool options, allowing customization based on specific application needs. Each port, including the x and y pilot ports (port 5 and port 6), can handle up to 5000 psi (350 bar), making it suitable for high-pressure systems. The DCDAXHV features hardened spool and sleeve for reduced leakage and enhanced wear characteristics, ensuring long-term performance reliability. It also employs Sun's floating style construction which helps prevent internal parts from binding due to installation torque or variations in cavity/cartridge machining. This design enhances the overall durability and operational smoothness of the valve. Key specifications include a flow capacity ranging from 11 to 30 gpm (38 to 120 L/min), with a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting. The maximum operating pressure for this model is consistent at 5000 psi (350 bar). Leakage rates are minimal, stated at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical details include a pilot volume displacement of .06 in\u00b3 (0.98 cc), a valve hex size of 1-1/8 in. (28.6 mm), and an installation torque between 45 -50 lbf\u00b7ft (61 -68 Nm). The model weighs approximately .80 lb (0.35 kg). The DCDAXHV is well-suited for applications requiring precise control over fluid direction and pressure within hydraulic systems, providing both robust performance and reliability in demanding operational conditions.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

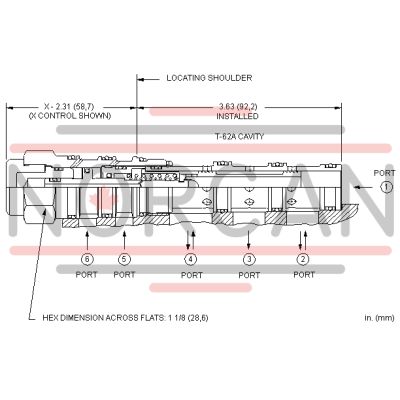

| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
