SUN HYDRAULICS
DCDAXNN
$247.61 USD
- SUN HYDRAULICS
- Material:DCDAXNN
- Model:DCDA-XNN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDAXNN (DCDAXNN) is a three-position, 4-way directional cartridge valve characterized by its spring-centered configuration and a 6-port directional control facility. This model offers a choice of 10 different spool options, allowing for flexible application in various hydraulic systems. With a capacity ranging from 11 to 30 gpm (38 to 120 L/min), the DCDAXNN can handle maximum operating pressures up to 5000 psi (350 bar). Each path's leakage is specifically detailed in the technical data, ensuring precise performance metrics. Key features include hardened spool and sleeve which not only reduce leakage rates but also enhance wear characteristics, contributing to the valve's longevity and reliability. The innovative Sun floating style construction is incorporated to minimize internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve, ensuring responsive operation under varied conditions. The valve's design includes pilot ports (ports 5 and 6) that also support up to 5000 psi, demonstrating its robustness in high-pressure environments. Additional specifications such as maximum valve leakage at 110 SUS (24 cSt) being limited to 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and pilot volume displacement of .06 in\u00b3 (.98 cc), outline its efficient fluid handling capabilities. For installation, the valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque of between 45 -50 lbf ft (61 -68 Nm). The model weighs approximately .80 lb (0.35 kg), making it compact yet sturdy for industrial applications. A Viton seal kit for this cartridge model is available under part number: 990062006, ensuring easy maintenance and replacement processes.
The Sun Hydraulics DCDAXNN (DCDAXNN) is a three-position, 4-way directional cartridge valve characterized by its spring-centered configuration and a 6-port directional control facility. This model offers a choice of 10 different spool options, allowing for flexible application in various hydraulic systems. With a capacity ranging from 11 to 30 gpm (38 to 120 L/min), the DCDAXNN can handle maximum operating pressures up to 5000 psi (350 bar). Each path's leakage is specifically detailed in the technical data, ensuring precise performance metrics. Key features include hardened spool and sleeve which not only reduce leakage rates but also enhance wear characteristics, contributing to the valve's longevity and reliability. The innovative Sun floating style construction is incorporated to minimize internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve, ensuring responsive operation under varied conditions. The valve's design includes pilot ports (ports 5 and 6) that also support up to 5000 psi, demonstrating its robustness in high-pressure environments. Additional specifications such as maximum valve leakage at 110 SUS (24 cSt) being limited to 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and pilot volume displacement of .06 in\u00b3 (.98 cc), outline its efficient fluid handling capabilities. For installation, the valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque of between 45 -50 lbf ft (61 -68 Nm). The model weighs approximately .80 lb (0.35 kg), making it compact yet sturdy for industrial applications. A Viton seal kit for this cartridge model is available under part number: 990062006, ensuring easy maintenance and replacement processes.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

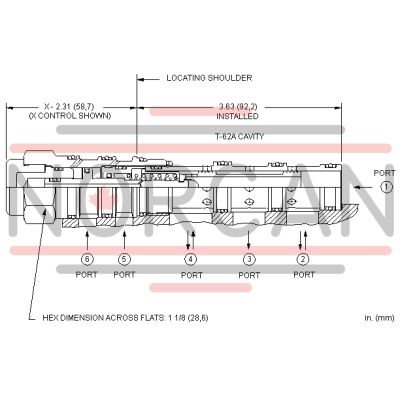

| Cavity | T-62A |
| Series | 2 |
| Capacity | 11 - 30 gpm38 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .06 in³0,98 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
