SUN HYDRAULICS
DCDDXCN
$215.04 USD
- SUN HYDRAULICS
- Material:DCDDXCN
- Model:DCDD-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDDXCN (DCDDXCN) is a robust two-position, detented, 4-way directional cartridge valve designed to operate with high efficiency and reliability in hydraulic systems. This model features a 6-port configuration that can be customized with up to three different spool options depending on the application requirements. Each port, including the pilot ports (port 5 and port 6), can withstand pressures up to 5000 psi (350 bar), making it suitable for high-pressure applications. The valve's capacity varies from 20 to 30 gpm (80 to 120 L/min) based on the spool type selected. It requires a minimum pilot pressure of 150 psi (10.5 bar) for shifting and supports a maximum operating pressure of 5000 psi (350 bar). The DCDDXCN is designed with hardened spool and sleeve which enhance durability by providing low spool leakage rates and resistance to wear. Additionally, it incorporates Sun's floating style construction which helps prevent internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model is particularly noted for its excellent sealing between the pilot ports and work ports, ensuring efficient operation without leakage. The maximum valve leakage at operational conditions is rated at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCDDXCN also features a compact design with a hex size of 1-1/8 in. (28.6 mm) and weighs approximately 0.80 lb (0.35 kg). Installation requires a torque between 45 -50 lbf\u00b7ft (61 -68 Nm), ensuring secure placement and operation within hydraulic systems. Ideal for various hydraulic applications requiring reliable directional control and high pressure tolerance, the Sun Hydraulics DCDDXCN offers performance consistency coupled with durable construction for extended operational life.
The Sun Hydraulics DCDDXCN (DCDDXCN) is a robust two-position, detented, 4-way directional cartridge valve designed to operate with high efficiency and reliability in hydraulic systems. This model features a 6-port configuration that can be customized with up to three different spool options depending on the application requirements. Each port, including the pilot ports (port 5 and port 6), can withstand pressures up to 5000 psi (350 bar), making it suitable for high-pressure applications. The valve's capacity varies from 20 to 30 gpm (80 to 120 L/min) based on the spool type selected. It requires a minimum pilot pressure of 150 psi (10.5 bar) for shifting and supports a maximum operating pressure of 5000 psi (350 bar). The DCDDXCN is designed with hardened spool and sleeve which enhance durability by providing low spool leakage rates and resistance to wear. Additionally, it incorporates Sun's floating style construction which helps prevent internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model is particularly noted for its excellent sealing between the pilot ports and work ports, ensuring efficient operation without leakage. The maximum valve leakage at operational conditions is rated at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCDDXCN also features a compact design with a hex size of 1-1/8 in. (28.6 mm) and weighs approximately 0.80 lb (0.35 kg). Installation requires a torque between 45 -50 lbf\u00b7ft (61 -68 Nm), ensuring secure placement and operation within hydraulic systems. Ideal for various hydraulic applications requiring reliable directional control and high pressure tolerance, the Sun Hydraulics DCDDXCN offers performance consistency coupled with durable construction for extended operational life.

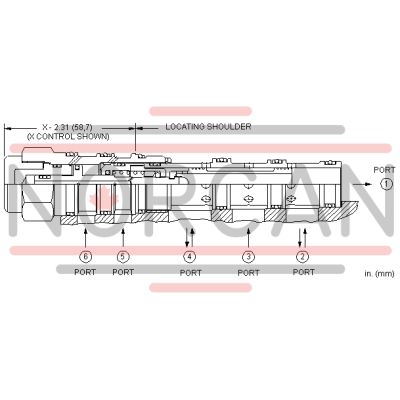

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-62A |
| Series | 2 |
| Capacity | 20 - 30 gpm80 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .12 in³2,0 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
