SUN HYDRAULICS
DCDDXHV
$234.90 USD
- SUN HYDRAULICS
- Material:DCDDXHV
- Model:DCDD-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCDDXHV (DCDDXHV) is a high-performance, two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model features a 6-port configuration that can be tailored with up to three different spool options depending on the specific requirements of the application. The DCDDXHV operates efficiently with a maximum capacity ranging from 20 to 30 gpm (80 to 120 L/min), accommodating a maximum operating pressure of 5000 psi (350 bar). Each port, including the pilot ports (port 5 and port 6), supports this high-pressure rating, ensuring versatile integration into various hydraulic circuits. The valve is engineered with hardened spool and sleeve to reduce spool leakage rates significantly while offering excellent wear characteristics. This design enhancement ensures long-lasting reliability and performance consistency in demanding operational conditions. Additionally, the DCDDXHV incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 to 50 lbf\u00b7ft (61 to 68 Nm). The minimal pilot pressure needed to shift the valve is set at 150 psi (10.5 bar), making it suitable for various pilot-operated systems. The model's compact design results in a lightweight footprint of approximately 0.80 lbs (0.35 kg), facilitating easy handling and integration into system designs without adding significant weight. Overall, the Sun Hydraulics DCDDXHV offers advanced hydraulic control with its customizable spool options and robust construction, making it ideal for applications requiring precise directional control under high-pressure conditions.
The Sun Hydraulics DCDDXHV (DCDDXHV) is a high-performance, two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model features a 6-port configuration that can be tailored with up to three different spool options depending on the specific requirements of the application. The DCDDXHV operates efficiently with a maximum capacity ranging from 20 to 30 gpm (80 to 120 L/min), accommodating a maximum operating pressure of 5000 psi (350 bar). Each port, including the pilot ports (port 5 and port 6), supports this high-pressure rating, ensuring versatile integration into various hydraulic circuits. The valve is engineered with hardened spool and sleeve to reduce spool leakage rates significantly while offering excellent wear characteristics. This design enhancement ensures long-lasting reliability and performance consistency in demanding operational conditions. Additionally, the DCDDXHV incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 to 50 lbf\u00b7ft (61 to 68 Nm). The minimal pilot pressure needed to shift the valve is set at 150 psi (10.5 bar), making it suitable for various pilot-operated systems. The model's compact design results in a lightweight footprint of approximately 0.80 lbs (0.35 kg), facilitating easy handling and integration into system designs without adding significant weight. Overall, the Sun Hydraulics DCDDXHV offers advanced hydraulic control with its customizable spool options and robust construction, making it ideal for applications requiring precise directional control under high-pressure conditions.

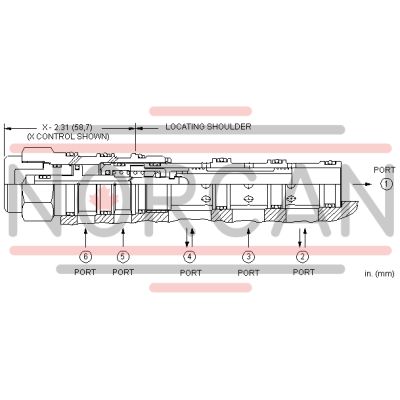

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-62A |
| Series | 2 |
| Capacity | 20 - 30 gpm80 - 120 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .12 in³2,0 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .80 lb0,35 kg |
| Seal kit - Cartridge | Viton: 990-062-006 |
