SUN HYDRAULICS
DCEADGN
$420.75 USD
- SUN HYDRAULICS
- Material:DCEADGN
- Model:DCEA-DGN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

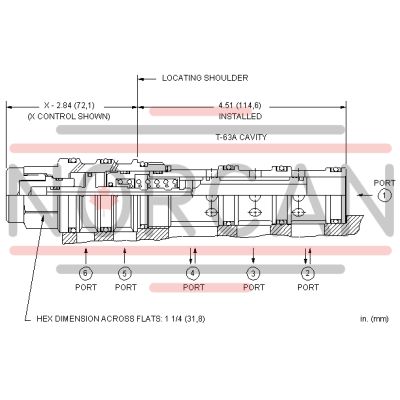

The Sun Hydraulics DCEADGN (DCEADGN) is a three-position, 4-way directional cartridge valve designed for high-performance hydraulic systems. This model features a spring-centered mechanism and includes six ports, with the supply port designated as port 1. Each port on this valve can withstand pressures up to 5000 psi (350 bar), making it suitable for demanding applications. The DCEADGN offers versatility through its choice of 10 different spool options, allowing customization based on specific system requirements. This valve's design incorporates hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing the unit's overall durability and reliability. It also utilizes Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity range of 25 to 100 gpm (95 to 380 L/min), and it requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve. The maximum operating pressure stands at 5000 psi (350 bar). Leakage performance is optimized, with maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical details include pilot volume displacement of .17 in\u00b2 (8 cc), a hex size for the valve at 1\u00bc inches (31.8 mm), and an installation torque range between 150 \u2013160 lbf\u00b7ft (203 \u2013217 Nm). The model weighs approximately 1.80 lbs (0.80 kg). For maintenance or repairs, a Viton seal kit is available under part number: 990063006. Overall, the Sun Hydraulics DCEADGN is engineered to provide robust performance and reliability for hydraulic systems requiring precise control over fluid direction and pressure.
The Sun Hydraulics DCEADGN (DCEADGN) is a three-position, 4-way directional cartridge valve designed for high-performance hydraulic systems. This model features a spring-centered mechanism and includes six ports, with the supply port designated as port 1. Each port on this valve can withstand pressures up to 5000 psi (350 bar), making it suitable for demanding applications. The DCEADGN offers versatility through its choice of 10 different spool options, allowing customization based on specific system requirements. This valve's design incorporates hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing the unit's overall durability and reliability. It also utilizes Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity range of 25 to 100 gpm (95 to 380 L/min), and it requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve. The maximum operating pressure stands at 5000 psi (350 bar). Leakage performance is optimized, with maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical details include pilot volume displacement of .17 in\u00b2 (8 cc), a hex size for the valve at 1\u00bc inches (31.8 mm), and an installation torque range between 150 \u2013160 lbf\u00b7ft (203 \u2013217 Nm). The model weighs approximately 1.80 lbs (0.80 kg). For maintenance or repairs, a Viton seal kit is available under part number: 990063006. Overall, the Sun Hydraulics DCEADGN is engineered to provide robust performance and reliability for hydraulic systems requiring precise control over fluid direction and pressure.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 25 - 100 gpm95 - 380 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .17 in³2,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
