SUN HYDRAULICS
DCEADNV
$431.67 USD
- SUN HYDRAULICS
- Material:DCEADNV
- Model:DCEA-DNV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEADNV (DCEADNV) is a highly versatile and robust three-position, 4-way directional cartridge valve. It features a spring-centered design with six ports, including the supply port (port 1) and x and y pilot ports (ports 5 and 6), each capable of handling up to 5000 psi or 350 bar. This model offers a choice of ten different spool options, allowing users to customize the valve according to specific application needs. The flow capacity of the DCEADNV ranges from 25 to 100 gpm (95 to 380 L/min), depending on the spool type selected. Key specifications include a minimum pilot pressure requirement of 125 psi (9 bar) for valve shifting, with maximum operating pressure also at 5000 psi (350 bar). The valve demonstrates excellent leakage control, with maximum leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The pilot volume displacement is measured at .17 in\u00b2 or approximately 8 cc. Designed for durability and reliability, the DCEADNV incorporates hardened spool and sleeve components that ensure low spool leakage rates and superior wear characteristics. Furthermore, it employs Sun's floating style construction which minimizes internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. Installation specifics include a hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 -160 lbf\u00b7ft (203 -217 Nm). The total weight of the model is about 1.80 lbs (0.80 kg). This valve is ideal for applications requiring precise control over hydraulic flow with options for high-pressure operations, making it suitable for various industrial hydraulic systems.
The Sun Hydraulics DCEADNV (DCEADNV) is a highly versatile and robust three-position, 4-way directional cartridge valve. It features a spring-centered design with six ports, including the supply port (port 1) and x and y pilot ports (ports 5 and 6), each capable of handling up to 5000 psi or 350 bar. This model offers a choice of ten different spool options, allowing users to customize the valve according to specific application needs. The flow capacity of the DCEADNV ranges from 25 to 100 gpm (95 to 380 L/min), depending on the spool type selected. Key specifications include a minimum pilot pressure requirement of 125 psi (9 bar) for valve shifting, with maximum operating pressure also at 5000 psi (350 bar). The valve demonstrates excellent leakage control, with maximum leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The pilot volume displacement is measured at .17 in\u00b2 or approximately 8 cc. Designed for durability and reliability, the DCEADNV incorporates hardened spool and sleeve components that ensure low spool leakage rates and superior wear characteristics. Furthermore, it employs Sun's floating style construction which minimizes internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. Installation specifics include a hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 -160 lbf\u00b7ft (203 -217 Nm). The total weight of the model is about 1.80 lbs (0.80 kg). This valve is ideal for applications requiring precise control over hydraulic flow with options for high-pressure operations, making it suitable for various industrial hydraulic systems.

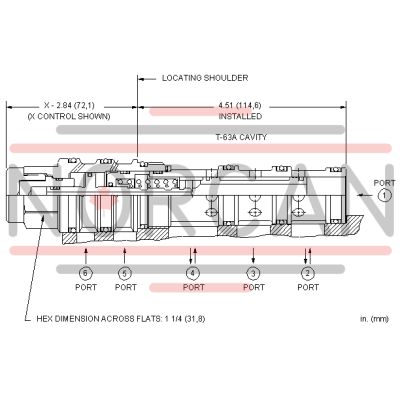

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 25 - 100 gpm95 - 380 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .17 in³2,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
