SUN HYDRAULICS
DCEADWN
$424.72 USD
- SUN HYDRAULICS
- Material:DCEADWN
- Model:DCEA-DWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEADWN (DCEADWN) is a versatile hydraulic valve designed for high-pressure applications, capable of handling pressures up to 5000 psi (350 bar). This three-position, 4-way directional cartridge is spring-centered and features a 6-port configuration, which includes the x and y pilot ports (port 5 and port 6). The valve offers a range of spool options, with ten different types to choose from, allowing customization based on specific system requirements. Each path's leakage is meticulously listed in the technical data to ensure precise performance. The DCEADWN is engineered with a hardened spool and sleeve that not only enhance durability but also maintain low spool leakage rates and superior wear characteristics. This model benefits from Sun\u2019s floating style construction, which significantly reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve operates efficiently within a flow capacity range of 25 to 100 gpm (95 to 380 L/min), requiring a minimum pilot pressure of 125 psi (9 bar) to shift. Key specifications include a maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and pilot volume displacement of .17 in\u00b2 (8 cc). Installation specifics recommend a torque between 150 and 160 lbf\u00b7ft (203-217 Nm), with the valve hex size being 1\u00bc inches (31.8 mm). The model weighs approximately 1.80 lbs (0.80 kg), ensuring it is robust yet manageable for various installations. This model uses Viton seals for enhanced performance under varied conditions, part number for the seal kit/cartridge being Viton:990063006.
The Sun Hydraulics DCEADWN (DCEADWN) is a versatile hydraulic valve designed for high-pressure applications, capable of handling pressures up to 5000 psi (350 bar). This three-position, 4-way directional cartridge is spring-centered and features a 6-port configuration, which includes the x and y pilot ports (port 5 and port 6). The valve offers a range of spool options, with ten different types to choose from, allowing customization based on specific system requirements. Each path's leakage is meticulously listed in the technical data to ensure precise performance. The DCEADWN is engineered with a hardened spool and sleeve that not only enhance durability but also maintain low spool leakage rates and superior wear characteristics. This model benefits from Sun\u2019s floating style construction, which significantly reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve operates efficiently within a flow capacity range of 25 to 100 gpm (95 to 380 L/min), requiring a minimum pilot pressure of 125 psi (9 bar) to shift. Key specifications include a maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), and pilot volume displacement of .17 in\u00b2 (8 cc). Installation specifics recommend a torque between 150 and 160 lbf\u00b7ft (203-217 Nm), with the valve hex size being 1\u00bc inches (31.8 mm). The model weighs approximately 1.80 lbs (0.80 kg), ensuring it is robust yet manageable for various installations. This model uses Viton seals for enhanced performance under varied conditions, part number for the seal kit/cartridge being Viton:990063006.

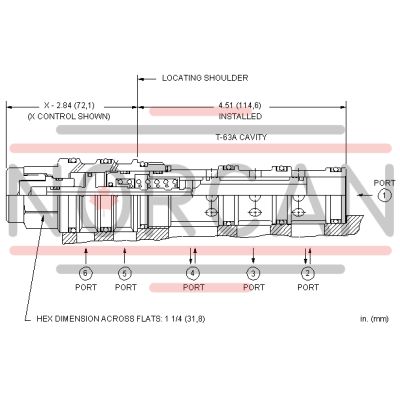

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 25 - 100 gpm95 - 380 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .17 in³2,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
