SUN HYDRAULICS
DCEAXHV
$432.67 USD
- SUN HYDRAULICS
- Material:DCEAXHV
- Model:DCEA-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEAXHV (DCEAXHV) is a three-position, 4-way directional cartridge valve, designed to be spring-centered and configured with one of 10 different spool options. Its robust design includes a supply port (port 1) and five other ports, all of which can handle up to 5000 psi or 350 bar. This includes the x and y pilot ports (port 5 and port 6), enhancing its versatility in various hydraulic applications. This model features a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in demanding operational conditions. The valve operates within a capacity range of 25 to 100 gpm (95 to 380 L/min), with a minimum pilot pressure requirement for shifting the valve set at 125 psi or 9 bar. The maximum operating pressure for the DCEAXHV remains consistent at 5000 psi or 350 bar. Sun Hydraulics has incorporated their floating style construction into this model to minimize internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable performance even under varied installation conditions. The valve's hex size is measured at 1-1/4 inches (31.8 mm) with an installation torque range between 150 -160 lbf ft (203 -217 Nm). Weighing in at approximately 1.80 lb (0.80 kg), the DCEAXHV maintains a compact yet durable form factor suitable for various hydraulic systems requiring precise control over fluid direction and flow.
The Sun Hydraulics DCEAXHV (DCEAXHV) is a three-position, 4-way directional cartridge valve, designed to be spring-centered and configured with one of 10 different spool options. Its robust design includes a supply port (port 1) and five other ports, all of which can handle up to 5000 psi or 350 bar. This includes the x and y pilot ports (port 5 and port 6), enhancing its versatility in various hydraulic applications. This model features a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, crucial for maintaining efficiency and longevity in demanding operational conditions. The valve operates within a capacity range of 25 to 100 gpm (95 to 380 L/min), with a minimum pilot pressure requirement for shifting the valve set at 125 psi or 9 bar. The maximum operating pressure for the DCEAXHV remains consistent at 5000 psi or 350 bar. Sun Hydraulics has incorporated their floating style construction into this model to minimize internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable performance even under varied installation conditions. The valve's hex size is measured at 1-1/4 inches (31.8 mm) with an installation torque range between 150 -160 lbf ft (203 -217 Nm). Weighing in at approximately 1.80 lb (0.80 kg), the DCEAXHV maintains a compact yet durable form factor suitable for various hydraulic systems requiring precise control over fluid direction and flow.

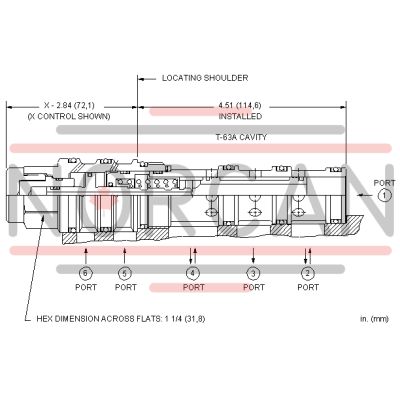

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 25 - 100 gpm95 - 380 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .17 in³2,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
