SUN HYDRAULICS
DCEBXHV
$432.67 USD
- SUN HYDRAULICS
- Material:DCEBXHV
- Model:DCEB-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEBXHV (DCEBXHV) is a high-performance two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model is equipped with six ports and can be configured with up to three different spool options, enhancing its versatility in various operational setups. The valve's capacity ranges between 40 to 60 gpm (160 to 240 L/min), making it suitable for systems requiring high flow rates. Each port on the DCEBXHV, including the x and y pilot ports (ports 5 and 6), can withstand a maximum operating pressure of up to 5000 psi (350 bar), ensuring reliability under high-pressure conditions. The valve features a hardened spool and sleeve which not only reduce leakage but also provide excellent wear characteristics, extending the operational lifespan of the component. Sun Hydraulics has incorporated its floating style construction into the DCEBXHV model. This design minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining, thereby maintaining consistent performance and reducing maintenance requirements. The DCEBXHV is designed for easy installation with a hex size of 1-1/4 inches (31.8 mm) and an installation torque range of 150-160 lbf ft (203-217 Nm). Its compact design weighs approximately 1.80 lbs (0.80 kg), facilitating integration into various hydraulic systems without significantly adding to the overall weight. The model also includes a Viton seal kit (990063006) that ensures enhanced sealing capabilities across various temperature ranges and environmental conditions. Overall, the Sun Hydraulics DCEBXHV valve offers robust construction, versatile configuration options, and reliable performance for demanding hydraulic applications.
The Sun Hydraulics DCEBXHV (DCEBXHV) is a high-performance two-position, detented, 4-way directional cartridge valve designed for robust hydraulic system applications. This model is equipped with six ports and can be configured with up to three different spool options, enhancing its versatility in various operational setups. The valve's capacity ranges between 40 to 60 gpm (160 to 240 L/min), making it suitable for systems requiring high flow rates. Each port on the DCEBXHV, including the x and y pilot ports (ports 5 and 6), can withstand a maximum operating pressure of up to 5000 psi (350 bar), ensuring reliability under high-pressure conditions. The valve features a hardened spool and sleeve which not only reduce leakage but also provide excellent wear characteristics, extending the operational lifespan of the component. Sun Hydraulics has incorporated its floating style construction into the DCEBXHV model. This design minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining, thereby maintaining consistent performance and reducing maintenance requirements. The DCEBXHV is designed for easy installation with a hex size of 1-1/4 inches (31.8 mm) and an installation torque range of 150-160 lbf ft (203-217 Nm). Its compact design weighs approximately 1.80 lbs (0.80 kg), facilitating integration into various hydraulic systems without significantly adding to the overall weight. The model also includes a Viton seal kit (990063006) that ensures enhanced sealing capabilities across various temperature ranges and environmental conditions. Overall, the Sun Hydraulics DCEBXHV valve offers robust construction, versatile configuration options, and reliable performance for demanding hydraulic applications.

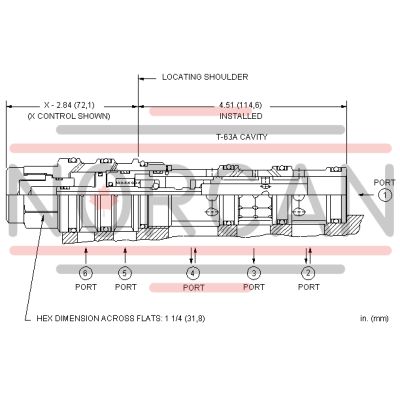

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 40 - 60 gpm160 - 240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .34 in³5,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
