SUN HYDRAULICS
DCEDXCN
$369.42 USD
- SUN HYDRAULICS
- Material:DCEDXCN
- Model:DCED-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEDXCN (DCEDXCN) is a robust and versatile two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. This model, which falls under the T63A cavity and Series 3 category, is capable of handling a maximum operating pressure of 5000 psi (350 bar) across all ports, including the pilot ports (port 5 and port 6). Each port can accommodate fluid flow rates ranging from 40 to 60 gpm (160 to 240 L/min), ensuring sufficient capacity for a variety of applications. The DCEDXCN features a minimum pilot pressure requirement of 125 psi (9 bar) to shift the valve, indicating its efficiency in response to control signals. The valve's construction includes a hardened spool and sleeve which not only reduce leakage\u2014rated at a maximum of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar)\u2014but also enhance wear resistance for prolonged service life. Furthermore, it incorporates Sun\u2019s floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This model also boasts a compact design with a weight of only 1.80 lbs (0.80 kg). Installation requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 to 160 lbf\u00b7ft (203 to 217 Nm). For maintenance or repairs, the corresponding seal kit available is Viton:990063006. With its robust design and comprehensive technical specifications, the Sun Hydraulics DCEDXCN directional cartridge provides reliable performance in demanding hydraulic applications.
The Sun Hydraulics DCEDXCN (DCEDXCN) is a robust and versatile two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. This model, which falls under the T63A cavity and Series 3 category, is capable of handling a maximum operating pressure of 5000 psi (350 bar) across all ports, including the pilot ports (port 5 and port 6). Each port can accommodate fluid flow rates ranging from 40 to 60 gpm (160 to 240 L/min), ensuring sufficient capacity for a variety of applications. The DCEDXCN features a minimum pilot pressure requirement of 125 psi (9 bar) to shift the valve, indicating its efficiency in response to control signals. The valve's construction includes a hardened spool and sleeve which not only reduce leakage\u2014rated at a maximum of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar)\u2014but also enhance wear resistance for prolonged service life. Furthermore, it incorporates Sun\u2019s floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This model also boasts a compact design with a weight of only 1.80 lbs (0.80 kg). Installation requires a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 to 160 lbf\u00b7ft (203 to 217 Nm). For maintenance or repairs, the corresponding seal kit available is Viton:990063006. With its robust design and comprehensive technical specifications, the Sun Hydraulics DCEDXCN directional cartridge provides reliable performance in demanding hydraulic applications.

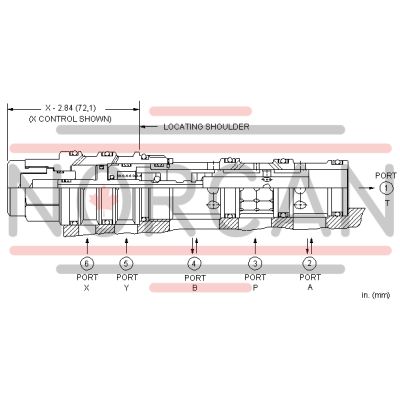

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 40 - 60 gpm160 - 240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .34 in³5,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
