SUN HYDRAULICS
DCEDXCV
$380.34 USD
- SUN HYDRAULICS
- Material:DCEDXCV
- Model:DCED-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEDXCV (DCEDXCV) is a high-performance, two-position, detented, 4-way directional cartridge valve designed for robust hydraulic applications. This valve features a configuration that allows for up to three different spool options, enhancing its versatility in various hydraulic systems. It utilizes a T63A cavity and belongs to Series 3, ensuring compatibility with specific hydraulic setups. With a capacity ranging from 40 to 60 gpm (160 to 240 L/min), the DCEDXCV can handle substantial fluid volumes, making it suitable for demanding operations. It operates efficiently under a maximum pressure of 5000 psi (350 bar) and requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve effectively. The valve's design incorporates hardened spool and sleeve components that provide low leakage rates\u2014specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar)\u2014and excellent wear characteristics. The DCEDXCV also features Sun's floating style construction, which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable performance and durability even under challenging conditions. The pilot ports (5 and 6) are positively sealed from the work ports to prevent cross-contamination and leakage. This model is engineered with precise dimensions including a valve hex size of 1-1/4 inches (31.8 mm) and requires an installation torque between 150 -160 lbf-ft (203 -217 Nm). Weighing at approximately 1.80 lbs (0.80 kg), it is robust yet manageable for installation and maintenance tasks. Additionally, it supports Viton seals as specified by the seal kit/cartridge number: 990063006, providing further customization based on operational requirements.
The Sun Hydraulics DCEDXCV (DCEDXCV) is a high-performance, two-position, detented, 4-way directional cartridge valve designed for robust hydraulic applications. This valve features a configuration that allows for up to three different spool options, enhancing its versatility in various hydraulic systems. It utilizes a T63A cavity and belongs to Series 3, ensuring compatibility with specific hydraulic setups. With a capacity ranging from 40 to 60 gpm (160 to 240 L/min), the DCEDXCV can handle substantial fluid volumes, making it suitable for demanding operations. It operates efficiently under a maximum pressure of 5000 psi (350 bar) and requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve effectively. The valve's design incorporates hardened spool and sleeve components that provide low leakage rates\u2014specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar)\u2014and excellent wear characteristics. The DCEDXCV also features Sun's floating style construction, which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable performance and durability even under challenging conditions. The pilot ports (5 and 6) are positively sealed from the work ports to prevent cross-contamination and leakage. This model is engineered with precise dimensions including a valve hex size of 1-1/4 inches (31.8 mm) and requires an installation torque between 150 -160 lbf-ft (203 -217 Nm). Weighing at approximately 1.80 lbs (0.80 kg), it is robust yet manageable for installation and maintenance tasks. Additionally, it supports Viton seals as specified by the seal kit/cartridge number: 990063006, providing further customization based on operational requirements.

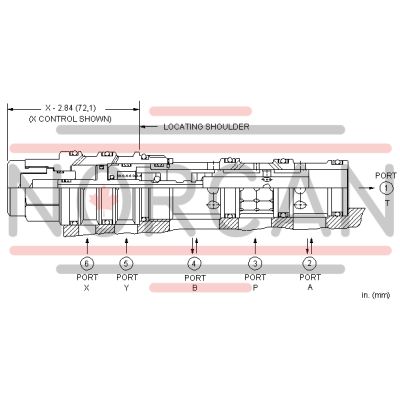

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 40 - 60 gpm160 - 240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .34 in³5,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
