SUN HYDRAULICS
DCEDXHN
$378.35 USD
- SUN HYDRAULICS
- Material:DCEDXHN
- Model:DCED-XHN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEDXHN (DCEDXHN) is a two-position, detented, 4-way directional cartridge valve. This model features six ports and can be configured with up to three different spool options, depending on the specific application requirements. The supply port is designated as port 3, and all ports are capable of accommodating pressures up to 5000 psi (350 bar). The pilot ports, labeled as port 5 and port 6, are designed to be positively sealed from the work ports, enhancing the valve's operational integrity and leakage prevention. Key technical specifications include a flow capacity ranging from 40 to 60 gpm (160 to 240 L/min), depending on the chosen spool type. The minimum pilot pressure required to shift the valve is set at 125 psi (9 bar), ensuring reliable operation under varied conditions. The maximum operating pressure for this model remains consistent at 5000 psi (350 bar). Leakage rates are meticulously documented in the technical data for each path, with maximum valve leakage noted at approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCEDXHN incorporates Sun Hydraulics' floating style construction which minimizes internal parts binding\u2014a common issue in valves due to excessive installation torque or cavity/cartridge machining variations. This design feature significantly contributes to the unit's durability and consistent performance. For installation, a hex size of 1-1/4 inches (31.8 mm) is required with an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm). The model weighs about 1.80 lbs (0.80 kg), and Viton seal kits for this cartridge are available under part number: 990063006. This robust configuration and versatile design make the DCEDXHN ideal for applications requiring reliable directional control in hydraulic systems across various deployment scenarios.
The Sun Hydraulics DCEDXHN (DCEDXHN) is a two-position, detented, 4-way directional cartridge valve. This model features six ports and can be configured with up to three different spool options, depending on the specific application requirements. The supply port is designated as port 3, and all ports are capable of accommodating pressures up to 5000 psi (350 bar). The pilot ports, labeled as port 5 and port 6, are designed to be positively sealed from the work ports, enhancing the valve's operational integrity and leakage prevention. Key technical specifications include a flow capacity ranging from 40 to 60 gpm (160 to 240 L/min), depending on the chosen spool type. The minimum pilot pressure required to shift the valve is set at 125 psi (9 bar), ensuring reliable operation under varied conditions. The maximum operating pressure for this model remains consistent at 5000 psi (350 bar). Leakage rates are meticulously documented in the technical data for each path, with maximum valve leakage noted at approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DCEDXHN incorporates Sun Hydraulics' floating style construction which minimizes internal parts binding\u2014a common issue in valves due to excessive installation torque or cavity/cartridge machining variations. This design feature significantly contributes to the unit's durability and consistent performance. For installation, a hex size of 1-1/4 inches (31.8 mm) is required with an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm). The model weighs about 1.80 lbs (0.80 kg), and Viton seal kits for this cartridge are available under part number: 990063006. This robust configuration and versatile design make the DCEDXHN ideal for applications requiring reliable directional control in hydraulic systems across various deployment scenarios.

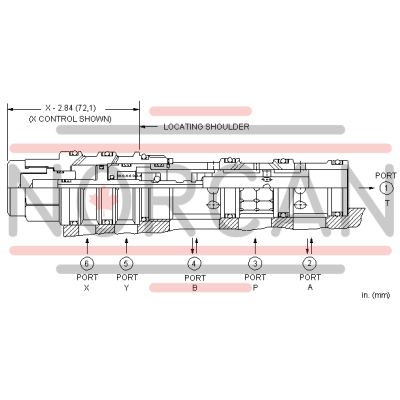

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 40 - 60 gpm160 - 240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .34 in³5,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
