SUN HYDRAULICS
DCEDXHV
$389.28 USD
- SUN HYDRAULICS
- Material:DCEDXHV
- Model:DCED-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEDXHV (DCEDXHV) is a robust two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. With a maximum operating pressure of 5000 psi (350 bar), this valve is capable of handling significant hydraulic power demands. It features six ports with the supply port designated as port 3, and it can manage flow capacities ranging from 40 to 60 gpm (160 to 240 L/min). The DCEDXHV model offers up to three different spool options, allowing customization based on specific application requirements. This valve ensures minimal leakage at each path, maintaining efficiency with a maximum valve leakage rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). It requires a minimum pilot pressure of 125 psi (9 bar) to shift, and its pilot ports (ports 5 and 6) are positively sealed from the work ports to prevent cross-contamination. The hardened spool and sleeve enhance durability and provide consistent low spool leakage rates, which are crucial for maintaining the integrity and performance of hydraulic systems over time. Additionally, the DCEDXHV incorporates Sun's floating style construction which helps minimize internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable operation and extends the lifespan of the component. The valve's hex size is 1-1/4 in. (31.8 mm), and it requires an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm). Weighing only 1.80 lbs (0.80 kg), this model combines lightweight design with high functionality, making it suitable for various demanding applications where precision and reliability are paramount.
The Sun Hydraulics DCEDXHV (DCEDXHV) is a robust two-position, detented, 4-way directional cartridge valve designed for high-pressure hydraulic systems. With a maximum operating pressure of 5000 psi (350 bar), this valve is capable of handling significant hydraulic power demands. It features six ports with the supply port designated as port 3, and it can manage flow capacities ranging from 40 to 60 gpm (160 to 240 L/min). The DCEDXHV model offers up to three different spool options, allowing customization based on specific application requirements. This valve ensures minimal leakage at each path, maintaining efficiency with a maximum valve leakage rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). It requires a minimum pilot pressure of 125 psi (9 bar) to shift, and its pilot ports (ports 5 and 6) are positively sealed from the work ports to prevent cross-contamination. The hardened spool and sleeve enhance durability and provide consistent low spool leakage rates, which are crucial for maintaining the integrity and performance of hydraulic systems over time. Additionally, the DCEDXHV incorporates Sun's floating style construction which helps minimize internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable operation and extends the lifespan of the component. The valve's hex size is 1-1/4 in. (31.8 mm), and it requires an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm). Weighing only 1.80 lbs (0.80 kg), this model combines lightweight design with high functionality, making it suitable for various demanding applications where precision and reliability are paramount.

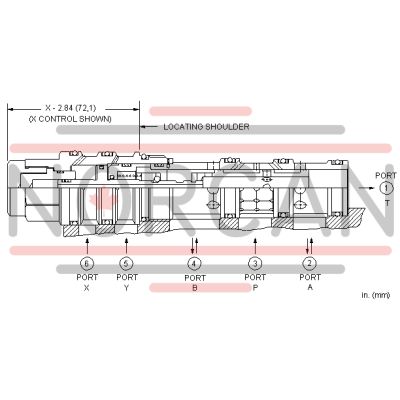

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 40 - 60 gpm160 - 240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .34 in³5,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
