SUN HYDRAULICS
DCEDXXV
$385.30 USD
- SUN HYDRAULICS
- Material:DCEDXXV
- Model:DCED-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEDXXV (DCEDXXV) is a high-performance hydraulic valve designed for robust fluid power applications. This two-position, detented, 4-way directional cartridge valve features a unique 6-port configuration that supports up to three different spool options, enhancing its versatility in various hydraulic systems. Each port, including the pilot ports (port 5 and port 6), can withstand pressures up to 5000 psi (350 bar), ensuring reliable operation under high-pressure conditions. The DCEDXXV is engineered with a hardened spool and sleeve which not only minimizes spool leakage but also provides exceptional wear characteristics, extending the valve's operational life. This durability is further supported by Sun's floating style construction which prevents internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. With a flow capacity ranging between 40 to 60 gpm (160 to 240 L/min), this valve meets the demands of systems requiring substantial fluid throughput. It requires a minimum pilot pressure of 125 psi (9 bar) to shift, ensuring responsive and precise control in pilot-to-shift operations. The maximum operating pressure for the DCEDXXV is consistent at 5000 psi (350 bar), with a maximum leakage rate specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 to 160 lbf\u00b7ft (203 to 217 Nm). The model weighs approximately 1.80 lbs (0.80 kg), making it suitable for various mounting configurations without adding significant weight. This Sun Hydraulics cartridge is an ideal choice for applications demanding reliable high-pressure performance and versatile configuration options in industrial hydraulic systems.
The Sun Hydraulics DCEDXXV (DCEDXXV) is a high-performance hydraulic valve designed for robust fluid power applications. This two-position, detented, 4-way directional cartridge valve features a unique 6-port configuration that supports up to three different spool options, enhancing its versatility in various hydraulic systems. Each port, including the pilot ports (port 5 and port 6), can withstand pressures up to 5000 psi (350 bar), ensuring reliable operation under high-pressure conditions. The DCEDXXV is engineered with a hardened spool and sleeve which not only minimizes spool leakage but also provides exceptional wear characteristics, extending the valve's operational life. This durability is further supported by Sun's floating style construction which prevents internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. With a flow capacity ranging between 40 to 60 gpm (160 to 240 L/min), this valve meets the demands of systems requiring substantial fluid throughput. It requires a minimum pilot pressure of 125 psi (9 bar) to shift, ensuring responsive and precise control in pilot-to-shift operations. The maximum operating pressure for the DCEDXXV is consistent at 5000 psi (350 bar), with a maximum leakage rate specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Installation specifications include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 to 160 lbf\u00b7ft (203 to 217 Nm). The model weighs approximately 1.80 lbs (0.80 kg), making it suitable for various mounting configurations without adding significant weight. This Sun Hydraulics cartridge is an ideal choice for applications demanding reliable high-pressure performance and versatile configuration options in industrial hydraulic systems.

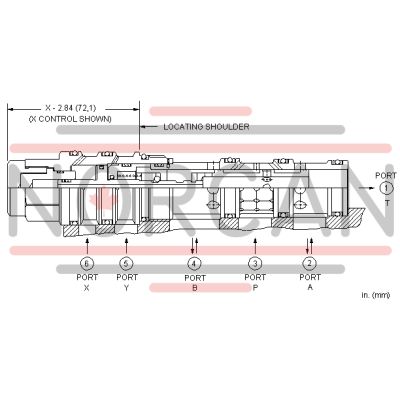

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 40 - 60 gpm160 - 240 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .34 in³5,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
