SUN HYDRAULICS
DCFADTN
$799.80 USD
- SUN HYDRAULICS
- Material:DCFADTN
- Model:DCFA-DTN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCFADTN (DCFADTN) is a versatile and robust hydraulic valve designed for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features a 6-port configuration that allows for multiple flow paths. The valve is capable of handling pressures up to 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 5 and port 6). It offers a flow capacity ranging from 50 to 200 gpm (200 to 760 L/min), making it suitable for a variety of hydraulic systems. The DCFADTN model incorporates hardened spool and sleeve components that ensure low leakage rates, consistent performance, and excellent wear characteristics. This durability is further enhanced by Sun Hydraulics' floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Designed with user flexibility in mind, the DCFADTN can be configured with one of ten different spool options depending on specific application requirements. Each spool type affects the capacity and operational characteristics of the valve, allowing users to tailor the valve's performance to their needs. Additionally, this model requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve, ensuring reliable operation under varying conditions. The valve also features a maximum leakage rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which speaks to its efficiency and reliability in maintaining system integrity. With an installation torque requirement between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm) and a hex size of 1\u215d inches (41.3 mm), the DCFADTN provides straightforward installation while maintaining robustness. Weighing at approximately 3.80 lbs (1.75 kg), it offers a compact yet powerful solution for advanced hydraulic systems requiring precise control and high-pressure capability.
The Sun Hydraulics DCFADTN (DCFADTN) is a versatile and robust hydraulic valve designed for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features a 6-port configuration that allows for multiple flow paths. The valve is capable of handling pressures up to 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 5 and port 6). It offers a flow capacity ranging from 50 to 200 gpm (200 to 760 L/min), making it suitable for a variety of hydraulic systems. The DCFADTN model incorporates hardened spool and sleeve components that ensure low leakage rates, consistent performance, and excellent wear characteristics. This durability is further enhanced by Sun Hydraulics' floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Designed with user flexibility in mind, the DCFADTN can be configured with one of ten different spool options depending on specific application requirements. Each spool type affects the capacity and operational characteristics of the valve, allowing users to tailor the valve's performance to their needs. Additionally, this model requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve, ensuring reliable operation under varying conditions. The valve also features a maximum leakage rate of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which speaks to its efficiency and reliability in maintaining system integrity. With an installation torque requirement between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm) and a hex size of 1\u215d inches (41.3 mm), the DCFADTN provides straightforward installation while maintaining robustness. Weighing at approximately 3.80 lbs (1.75 kg), it offers a compact yet powerful solution for advanced hydraulic systems requiring precise control and high-pressure capability.

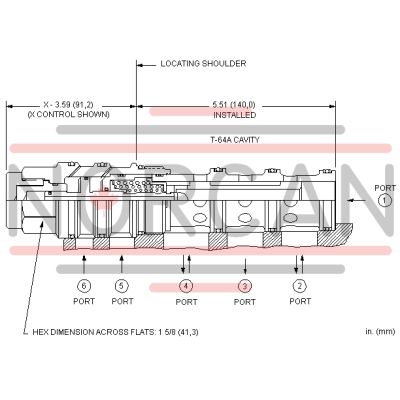

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-64A |
| Series | 4 |
| Capacity | 50 - 200 gpm200 - 760 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .42 in³6,9 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 3.80 lb1,75 kg |
| Seal kit - Cartridge | Viton: 990-064-006 |
