SUN HYDRAULICS
DCFAXHN
$796.82 USD
- SUN HYDRAULICS
- Material:DCFAXHN
- Model:DCFA-XHN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCFAXHN (DCFAXHN) is a versatile hydraulic valve designed for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features a 6-port configuration that can be tailored with one of 10 different spool options, allowing customization based on specific system requirements. The valve's capacity ranges between 50 to 200 gallons per minute (200 to 760 liters per minute), making it suitable for a variety of flow rates. The DCFAXHN operates at a maximum pressure of 5000 psi (350 bar), including the X and Y pilot ports (port 5 and port 6), ensuring robust performance under demanding conditions. Each port in this model is engineered to handle these high pressures, which is critical for reliable operation in hydraulic systems. The minimum pilot pressure required to shift the valve is relatively low at 125 psi (9 bar), enhancing its responsiveness and ease of use. One of the key features of this model is its hardened spool and sleeve, which provide low leakage rates and exceptional wear characteristics, crucial for maintaining efficiency and prolonging the valve\u2019s lifespan. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The DCFAXHN also offers practical installation features such as a hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 to 375 lbf\u00b7ft (474 to 508 Nm). Its compact design results in a moderate weight of approximately 3.80 pounds (1.75 kg), facilitating easier handling and integration into various systems without significantly adding to the overall mass. This model uses Viton seals, ensuring compatibility with a wide range of fluid types while providing excellent resistance to high temperatures and chemicals.
The Sun Hydraulics DCFAXHN (DCFAXHN) is a versatile hydraulic valve designed for high-pressure applications. This three-position, 4-way directional cartridge valve is spring-centered and features a 6-port configuration that can be tailored with one of 10 different spool options, allowing customization based on specific system requirements. The valve's capacity ranges between 50 to 200 gallons per minute (200 to 760 liters per minute), making it suitable for a variety of flow rates. The DCFAXHN operates at a maximum pressure of 5000 psi (350 bar), including the X and Y pilot ports (port 5 and port 6), ensuring robust performance under demanding conditions. Each port in this model is engineered to handle these high pressures, which is critical for reliable operation in hydraulic systems. The minimum pilot pressure required to shift the valve is relatively low at 125 psi (9 bar), enhancing its responsiveness and ease of use. One of the key features of this model is its hardened spool and sleeve, which provide low leakage rates and exceptional wear characteristics, crucial for maintaining efficiency and prolonging the valve\u2019s lifespan. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The DCFAXHN also offers practical installation features such as a hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 to 375 lbf\u00b7ft (474 to 508 Nm). Its compact design results in a moderate weight of approximately 3.80 pounds (1.75 kg), facilitating easier handling and integration into various systems without significantly adding to the overall mass. This model uses Viton seals, ensuring compatibility with a wide range of fluid types while providing excellent resistance to high temperatures and chemicals.

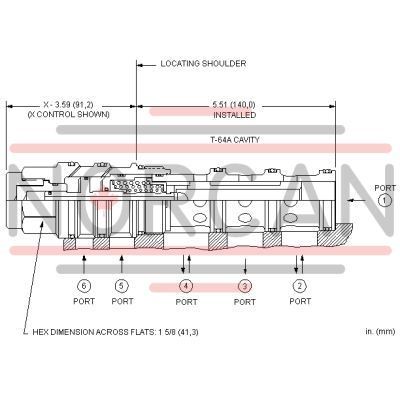

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-64A |
| Series | 4 |
| Capacity | 50 - 200 gpm200 - 760 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .42 in³6,9 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 3.80 lb1,75 kg |
| Seal kit - Cartridge | Viton: 990-064-006 |
