SUN HYDRAULICS
DCFBXXN
$763.66 USD
- SUN HYDRAULICS
- Material:DCFBXXN
- Model:DCFB-XXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCFBXXN (DCFBXXN) is a robust hydraulic directional control valve designed for high-pressure applications. This two-position, detented, 4-way directional cartridge valve features a unique configuration that includes up to three different spool options, enhancing its adaptability for various hydraulic systems. Each unit is capable of handling pressures up to 5000 psi (350 bar) across all ports, including the x and y pilot ports (ports 5 and 6), ensuring reliable operation under demanding conditions. With a flow capacity ranging from 80 to 120 gpm (320 to 480 L/min), the DCFBXXN valve is suitable for a wide range of flow rates, making it versatile for different hydraulic needs. The maximum valve leakage at 110 SUS (24 cSt) is maintained at a low rate of 2 in\u00b3/min per 1000 psi (30 cc/min per 70 bar), which signifies efficient performance with minimal fluid loss. The pilot volume displacement stands at .84 in\u00b3 (14 cc), which contributes to the precise control over the valve operations. Designed with durability in mind, the DCFBXXN features hardened spool and sleeve that not only reduce spool leakage rates but also ensure excellent wear characteristics even under continuous use. Additionally, Sun Hydraulics incorporates their floating style construction into this model. This design choice minimizes internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining, thus enhancing overall reliability and lifespan of the valve. The physical specifications include a hex size of 1-5/8 inches (41.3 mm) and an installation torque requirement between 350 -375 lbf\u00b7ft (474 -508 Nm). Weighing at approximately 3.80 lbs (1.75 kg), this model integrates seamlessly into existing systems without significant adjustments or modifications required. The seal kit for this cartridge uses Viton components, ensuring high resistance against temperature variations and chemical exposures typical in hydraulic environments.
The Sun Hydraulics DCFBXXN (DCFBXXN) is a robust hydraulic directional control valve designed for high-pressure applications. This two-position, detented, 4-way directional cartridge valve features a unique configuration that includes up to three different spool options, enhancing its adaptability for various hydraulic systems. Each unit is capable of handling pressures up to 5000 psi (350 bar) across all ports, including the x and y pilot ports (ports 5 and 6), ensuring reliable operation under demanding conditions. With a flow capacity ranging from 80 to 120 gpm (320 to 480 L/min), the DCFBXXN valve is suitable for a wide range of flow rates, making it versatile for different hydraulic needs. The maximum valve leakage at 110 SUS (24 cSt) is maintained at a low rate of 2 in\u00b3/min per 1000 psi (30 cc/min per 70 bar), which signifies efficient performance with minimal fluid loss. The pilot volume displacement stands at .84 in\u00b3 (14 cc), which contributes to the precise control over the valve operations. Designed with durability in mind, the DCFBXXN features hardened spool and sleeve that not only reduce spool leakage rates but also ensure excellent wear characteristics even under continuous use. Additionally, Sun Hydraulics incorporates their floating style construction into this model. This design choice minimizes internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining, thus enhancing overall reliability and lifespan of the valve. The physical specifications include a hex size of 1-5/8 inches (41.3 mm) and an installation torque requirement between 350 -375 lbf\u00b7ft (474 -508 Nm). Weighing at approximately 3.80 lbs (1.75 kg), this model integrates seamlessly into existing systems without significant adjustments or modifications required. The seal kit for this cartridge uses Viton components, ensuring high resistance against temperature variations and chemical exposures typical in hydraulic environments.

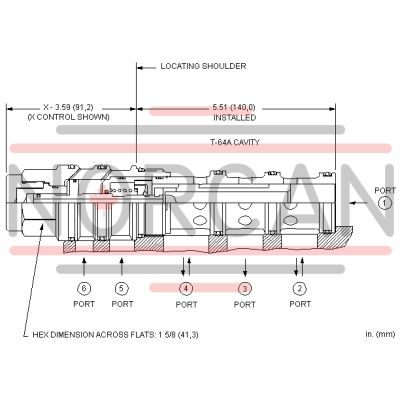

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-64A |
| Series | 4 |
| Capacity | 80 - 120 gpm320 - 480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .84 in³14 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 3.80 lb1,75 kg |
| Seal kit - Cartridge | Viton: 990-064-006 |
