SUN HYDRAULICS
DCFDXCV
$715.41 USD
- SUN HYDRAULICS
- Material:DCFDXCV
- Model:DCFD-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCFDXCV (DCFDXCV) is a robust two-position, detented, 4-way directional cartridge valve designed for high-capacity hydraulic systems. It features a configuration that allows for up to three different spool options, enhancing its versatility in application. The valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) across all ports, including the X and Y pilot ports (port 5 and port 6). Each path\u2019s leakage is meticulously documented to ensure reliability and performance consistency. This model boasts an impressive capacity range of 80 to 120 gpm (320 to 480 L/min), making it suitable for substantial hydraulic flow requirements. Its hardened spool and sleeve not only reduce spool leakage rates but also contribute to outstanding wear characteristics, thereby extending the valve's operational lifespan. Additionally, the Sun Hydraulics' floating style construction minimizes internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. The DCFDXCV requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve effectively and incorporates design features that seal the pilot ports from the work ports positively. It supports a maximum valve leakage at 110 SUS (24 cSt) of approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The pilot volume displacement stands at .84 in\u00b3 (14 cc), with an installation torque range between 350 - 375 lbf ft (474 - 508 Nm). The overall weight of this model is relatively light at approximately 3.80 lbs (1.75 kg), facilitating easier handling and installation processes. This model uses Viton seals for enhanced performance under various operating conditions, detailed under seal kit/cartridge number: Viton: 990064006.
The Sun Hydraulics DCFDXCV (DCFDXCV) is a robust two-position, detented, 4-way directional cartridge valve designed for high-capacity hydraulic systems. It features a configuration that allows for up to three different spool options, enhancing its versatility in application. The valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) across all ports, including the X and Y pilot ports (port 5 and port 6). Each path\u2019s leakage is meticulously documented to ensure reliability and performance consistency. This model boasts an impressive capacity range of 80 to 120 gpm (320 to 480 L/min), making it suitable for substantial hydraulic flow requirements. Its hardened spool and sleeve not only reduce spool leakage rates but also contribute to outstanding wear characteristics, thereby extending the valve's operational lifespan. Additionally, the Sun Hydraulics' floating style construction minimizes internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. The DCFDXCV requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve effectively and incorporates design features that seal the pilot ports from the work ports positively. It supports a maximum valve leakage at 110 SUS (24 cSt) of approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The pilot volume displacement stands at .84 in\u00b3 (14 cc), with an installation torque range between 350 - 375 lbf ft (474 - 508 Nm). The overall weight of this model is relatively light at approximately 3.80 lbs (1.75 kg), facilitating easier handling and installation processes. This model uses Viton seals for enhanced performance under various operating conditions, detailed under seal kit/cartridge number: Viton: 990064006.

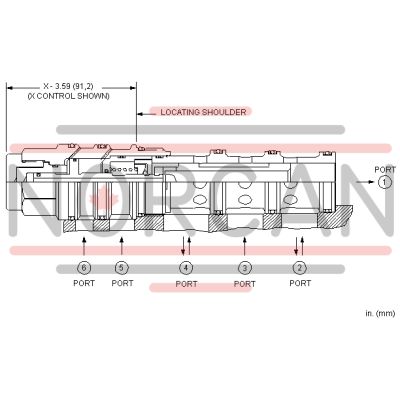

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-64A |
| Series | 4 |
| Capacity | 80 - 120 gpm320 - 480 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .84 in³14 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 3.80 lb1,75 kg |
| Seal kit - Cartridge | Viton: 990-064-006 |
