SUN HYDRAULICS
DCFDXXV
$720.38 USD
- SUN HYDRAULICS
- Material:DCFDXXV
- Model:DCFD-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCFDXXV (DCFDXXV) is a high-performance hydraulic control valve designed for robust and efficient fluid power management in various hydraulic systems. This two-position, detented, 4-way directional cartridge valve features a unique 6-port configuration that allows for up to three different spool options, enhancing its adaptability to different operational requirements. Each port, including the X and Y pilot ports (ports 5 and 6), can handle up to 5000 psi or 350 bar, ensuring the valve can withstand high-pressure applications. The DCFDXXV operates with a capacity ranging between 80 to 120 gpm or approximately 320 to 480 L/min, depending on the spool type used. It requires a minimum pilot pressure of 125 psi or about 9 bar to shift the valve effectively. The maximum operating pressure that this model can sustain is also capped at 5000 psi or 350 bar. Notably, the valve exhibits maximum leakage of only 2 in\u00b3/min at 1000 psi (or about 30 cc/min at 70 bar), highlighting its efficiency in maintaining system integrity. Engineered with a hardened spool and sleeve, the DCFDXXV offers low spool leakage rates and superior wear characteristics which contribute to its durability and consistent performance over time. It incorporates Sun\u2019s floating style construction designed to minimize internal parts binding which could result from excessive installation torque or variations in cavity/cartridge machining. This design consideration ensures reliable operation even under challenging installation conditions. The physical dimensions include a hex size of approximately1-5/8 inches (41.3 mm) and an installation torque requirement between 350 -375 lbf\u00b7ft (474 -508 Nm). The model weighs about 3.80 lbs (1.75 kg). For maintenance or repair, a Viton seal kit compatible with this model is identified by part number:990064006.
The Sun Hydraulics DCFDXXV (DCFDXXV) is a high-performance hydraulic control valve designed for robust and efficient fluid power management in various hydraulic systems. This two-position, detented, 4-way directional cartridge valve features a unique 6-port configuration that allows for up to three different spool options, enhancing its adaptability to different operational requirements. Each port, including the X and Y pilot ports (ports 5 and 6), can handle up to 5000 psi or 350 bar, ensuring the valve can withstand high-pressure applications. The DCFDXXV operates with a capacity ranging between 80 to 120 gpm or approximately 320 to 480 L/min, depending on the spool type used. It requires a minimum pilot pressure of 125 psi or about 9 bar to shift the valve effectively. The maximum operating pressure that this model can sustain is also capped at 5000 psi or 350 bar. Notably, the valve exhibits maximum leakage of only 2 in\u00b3/min at 1000 psi (or about 30 cc/min at 70 bar), highlighting its efficiency in maintaining system integrity. Engineered with a hardened spool and sleeve, the DCFDXXV offers low spool leakage rates and superior wear characteristics which contribute to its durability and consistent performance over time. It incorporates Sun\u2019s floating style construction designed to minimize internal parts binding which could result from excessive installation torque or variations in cavity/cartridge machining. This design consideration ensures reliable operation even under challenging installation conditions. The physical dimensions include a hex size of approximately1-5/8 inches (41.3 mm) and an installation torque requirement between 350 -375 lbf\u00b7ft (474 -508 Nm). The model weighs about 3.80 lbs (1.75 kg). For maintenance or repair, a Viton seal kit compatible with this model is identified by part number:990064006.

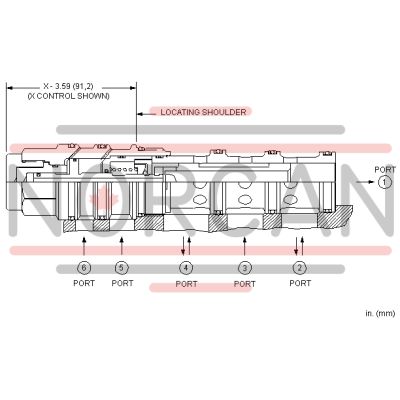

Two-position, detented, 4-way directional cartridges are 6-port directional valves that can be configured with up to 3 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-64A |
| Series | 4 |
| Capacity | 80 - 120 gpm320 - 480 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .84 in³14 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 3.80 lb1,75 kg |
| Seal kit - Cartridge | Viton: 990-064-006 |
