SUN HYDRAULICS
DDDCXCV
$211.77 USD
- SUN HYDRAULICS
- Material:DDDCXCV
- Model:DDDC-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDDCXCV (DDDCXCV) is a high-performance, three-position, 4-way directional cartridge valve, characterized by its spring-centered mechanism and 6-port configuration. This model is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 1 and port 6). The valve features a variety of spool options which dictate the capacity, tailored to specific application needs, with a general capacity of up to 20 gpm (80 L/min). Key specifications include a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting and a maximum leakage rate at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DDDCXCV incorporates hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing durability and consistent performance. Additionally, it utilizes Sun's floating style construction which minimizes internal part binding due to excessive installation torque or variations in cavity/cartridge machining. This valve is suitable for applications requiring reliable directional control in hydraulic systems, facilitated by its robust construction and versatile design. The installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range of 45-50 lbf\u00b7ft (61-68 Nm). A Viton seal kit for the cartridge ensures high-quality sealing under various operating conditions. This model's design and capabilities make it an essential component for sophisticated hydraulic setups demanding precise control and long-term reliability.
The Sun Hydraulics DDDCXCV (DDDCXCV) is a high-performance, three-position, 4-way directional cartridge valve, characterized by its spring-centered mechanism and 6-port configuration. This model is designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 1 and port 6). The valve features a variety of spool options which dictate the capacity, tailored to specific application needs, with a general capacity of up to 20 gpm (80 L/min). Key specifications include a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting and a maximum leakage rate at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The DDDCXCV incorporates hardened spool and sleeve components that ensure low leakage rates and superior wear characteristics, enhancing durability and consistent performance. Additionally, it utilizes Sun's floating style construction which minimizes internal part binding due to excessive installation torque or variations in cavity/cartridge machining. This valve is suitable for applications requiring reliable directional control in hydraulic systems, facilitated by its robust construction and versatile design. The installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range of 45-50 lbf\u00b7ft (61-68 Nm). A Viton seal kit for the cartridge ensures high-quality sealing under various operating conditions. This model's design and capabilities make it an essential component for sophisticated hydraulic setups demanding precise control and long-term reliability.

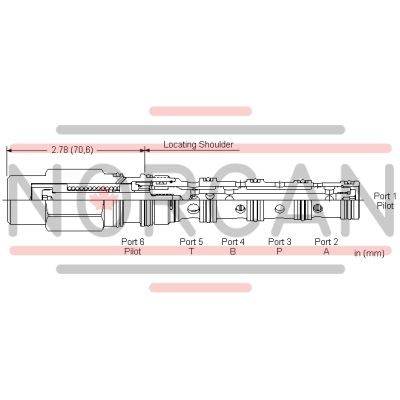

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
