SUN HYDRAULICS
DDDCXTV
$220.70 USD
- SUN HYDRAULICS
- Material:DDDCXTV
- Model:DDDC-XTV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDDCXTV (DDDCXTV) is a high-performance hydraulic valve characterized by its three-position, 4-way directional control and spring-centered configuration. This model features a robust design with a capacity of up to 20 gpm/80 L/min and is suitable for applications requiring precise fluid control under high pressure conditions, supporting maximum operating pressures up to 5000 psi (350 bar). All ports on this valve, including the pilot ports (port 1 and port 6), can accommodate the same high pressure, enhancing its versatility in various hydraulic systems. The DDDCXTV valve benefits from Sun Hydraulics' advanced engineering, including a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. This durability is essential for maintaining efficiency and performance over the valve's lifespan. Furthermore, it incorporates Sun\u2019s floating style construction which helps prevent internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve, ensuring responsive operation even under varied pressure conditions. The design also specifies a maximum leakage rate at 110 SUS (24 cSt) of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which highlights its efficacy in maintaining system integrity and reducing fluid loss. Installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range between 45\u201350 lbf\u00b7ft (61\u201368 Nm), making it straightforward to integrate into existing systems without extensive modifications. The seal kit for this cartridge uses Viton material, known for its excellent resistance to high temperatures and chemicals, thereby ensuring reliable sealing under diverse operating conditions.
The Sun Hydraulics DDDCXTV (DDDCXTV) is a high-performance hydraulic valve characterized by its three-position, 4-way directional control and spring-centered configuration. This model features a robust design with a capacity of up to 20 gpm/80 L/min and is suitable for applications requiring precise fluid control under high pressure conditions, supporting maximum operating pressures up to 5000 psi (350 bar). All ports on this valve, including the pilot ports (port 1 and port 6), can accommodate the same high pressure, enhancing its versatility in various hydraulic systems. The DDDCXTV valve benefits from Sun Hydraulics' advanced engineering, including a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. This durability is essential for maintaining efficiency and performance over the valve's lifespan. Furthermore, it incorporates Sun\u2019s floating style construction which helps prevent internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This model requires a minimum pilot pressure of 150 psi (10.5 bar) to shift the valve, ensuring responsive operation even under varied pressure conditions. The design also specifies a maximum leakage rate at 110 SUS (24 cSt) of only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which highlights its efficacy in maintaining system integrity and reducing fluid loss. Installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range between 45\u201350 lbf\u00b7ft (61\u201368 Nm), making it straightforward to integrate into existing systems without extensive modifications. The seal kit for this cartridge uses Viton material, known for its excellent resistance to high temperatures and chemicals, thereby ensuring reliable sealing under diverse operating conditions.

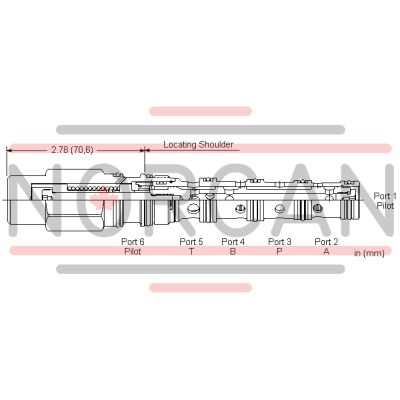

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
