SUN HYDRAULICS
DDDCXWN
$209.78 USD
- SUN HYDRAULICS
- Material:DDDCXWN
- Model:DDDC-XWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDDCXWN (Material Number: DDDCXWN) is a three-position, 4-way directional cartridge valve that exemplifies versatility and durability in hydraulic system applications. This model is spring-centered and features six ports, with the supply port designated as port 3. Each port, including the X and Y pilot ports (port 1 and port 6), can withstand pressures up to 5000 psi (350 bar). The DDDCXWN's performance capacity varies depending on the spool type selected, ensuring adaptability to different hydraulic functions. The valve's hardened spool and sleeve are designed to reduce leakage and provide superior wear characteristics, maintaining consistent performance even under demanding conditions. A notable feature of this model is its incorporation of Sun's floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of up to 20 gpm (80 L/min), a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting, and a maximum operating pressure limit of 5000 psi (350 bar). The valve also has a specified maximum leakage rate at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical features include a pilot volume displacement of .05 in\u00b3 (0.82 cc), a hex size for the valve at 1-1/8 inches (28.6 mm), and an installation torque range between 45-50 lbf ft (61-68 Nm). The seal kit for this cartridge uses Viton material, part number: 990052006. This model is ideal for applications requiring reliable directional control in hydraulic systems, providing both robust construction and precision operation necessary for efficient fluid power management.
The Sun Hydraulics DDDCXWN (Material Number: DDDCXWN) is a three-position, 4-way directional cartridge valve that exemplifies versatility and durability in hydraulic system applications. This model is spring-centered and features six ports, with the supply port designated as port 3. Each port, including the X and Y pilot ports (port 1 and port 6), can withstand pressures up to 5000 psi (350 bar). The DDDCXWN's performance capacity varies depending on the spool type selected, ensuring adaptability to different hydraulic functions. The valve's hardened spool and sleeve are designed to reduce leakage and provide superior wear characteristics, maintaining consistent performance even under demanding conditions. A notable feature of this model is its incorporation of Sun's floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of up to 20 gpm (80 L/min), a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting, and a maximum operating pressure limit of 5000 psi (350 bar). The valve also has a specified maximum leakage rate at 110 SUS (24 cSt) of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additional technical features include a pilot volume displacement of .05 in\u00b3 (0.82 cc), a hex size for the valve at 1-1/8 inches (28.6 mm), and an installation torque range between 45-50 lbf ft (61-68 Nm). The seal kit for this cartridge uses Viton material, part number: 990052006. This model is ideal for applications requiring reliable directional control in hydraulic systems, providing both robust construction and precision operation necessary for efficient fluid power management.

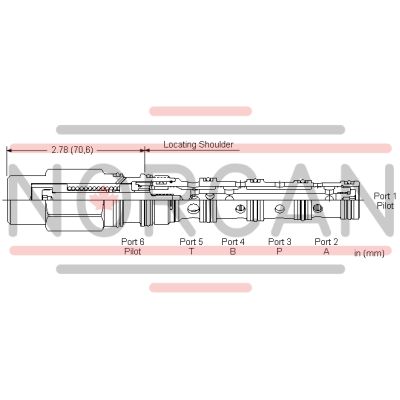

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
