The Sun Hydraulics DDDCXWV (DDDCXWV) is a high-capacity, three-position, 4-way directional cartridge valve. This spring-centered, 6-port directional valve offers versatile configurations through a variety of spool options. The DDDCXWV is designed to operate with a maximum pressure of 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 1 and port 6). Each path's leakage rates, including pilot paths, are meticulously documented to ensure reliability and performance. This model features a hardened spool and sleeve that not only reduce spool leakage but also enhance wear characteristics, contributing to the valve's longevity and consistent performance. The incorporation of Sun\u2019s floating style construction minimizes the risk of internal parts binding which could result from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of 20 gpm (80 L/min), with a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting. It supports a maximum operating pressure up to 5000 psi (350 bar), with maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min per 1000 psi (30 cc/min per 70 bar). The pilot volume displacement stands at approximately .05 in\u00b3 (0.82 cc). For installation, the valve requires a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 \u2013 50 lbf.ft (61 \u2013 68 Nm). The seal kit for this cartridge uses Viton material, enhancing its resistance to various environmental factors. The Sun Hydraulics DDDCXWV is engineered for applications requiring precise control over hydraulic flow directions under high-pressure conditions, making it suitable for advanced hydraulic systems needing robust, reliable performance with minimal maintenance.
The Sun Hydraulics DDDCXWV (DDDCXWV) is a high-capacity, three-position, 4-way directional cartridge valve. This spring-centered, 6-port directional valve offers versatile configurations through a variety of spool options. The DDDCXWV is designed to operate with a maximum pressure of 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 1 and port 6). Each path's leakage rates, including pilot paths, are meticulously documented to ensure reliability and performance. This model features a hardened spool and sleeve that not only reduce spool leakage but also enhance wear characteristics, contributing to the valve's longevity and consistent performance. The incorporation of Sun\u2019s floating style construction minimizes the risk of internal parts binding which could result from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of 20 gpm (80 L/min), with a minimum pilot pressure requirement of 150 psi (10.5 bar) for valve shifting. It supports a maximum operating pressure up to 5000 psi (350 bar), with maximum valve leakage at 110 SUS (24 cSt) noted as 2 in\u00b3/min per 1000 psi (30 cc/min per 70 bar). The pilot volume displacement stands at approximately .05 in\u00b3 (0.82 cc). For installation, the valve requires a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 \u2013 50 lbf.ft (61 \u2013 68 Nm). The seal kit for this cartridge uses Viton material, enhancing its resistance to various environmental factors. The Sun Hydraulics DDDCXWV is engineered for applications requiring precise control over hydraulic flow directions under high-pressure conditions, making it suitable for advanced hydraulic systems needing robust, reliable performance with minimal maintenance.

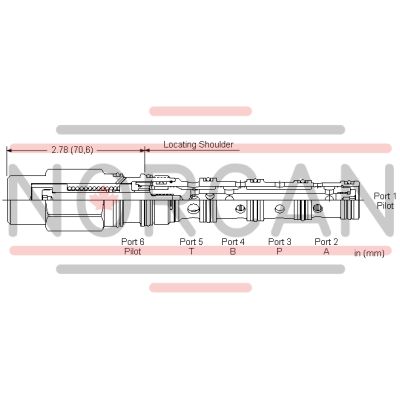

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 150 psi10,5 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
