SUN HYDRAULICS
DDDGXCN
$182.77 USD
- SUN HYDRAULICS
- Material:DDDGXCN
- Model:DDDG-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDDGXCN (DDDGXCN) is a two-position, 3-way directional cartridge valve designed for high-performance hydraulic systems. This model features a unique configuration that includes six ports, with port 5 not utilized, allowing for versatile plumbing options. The valve operates under a maximum pressure of 5000 psi (350 bar) and can accommodate flow rates up to 20 gpm (80 L/min). It supports various spool configurations, enhancing its adaptability to different hydraulic applications. Key specifications include the requirement of a minimum pilot pressure of 145 psi (10 bar) for valve shifting and 290 psi (20 bar) for full shift at rated flow, ensuring precise control over the hydraulic operations. The valve's hardened spool and sleeve are engineered to provide low leakage rates and superior wear characteristics, contributing to the reliability and longevity of the system. The DDDGXCN incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This feature ensures smooth operation and consistent performance under varying conditions. The valve also has a specified installation torque range of 45 - 50 lbf ft (61 - 68 Nm), which helps in achieving optimal installation precision. Furthermore, this model uses Viton seals (part number: 990052006) for enhanced chemical resistance and durability under high temperatures and pressures. Its compact design with a hex size of 1-1/8 in. (28.6 mm) allows for easy integration into various hydraulic circuits without requiring extensive modifications. Overall, the Sun Hydraulics DDDGXCN is crafted to offer robust performance in demanding hydraulic applications where precision and reliability are paramount.
The Sun Hydraulics DDDGXCN (DDDGXCN) is a two-position, 3-way directional cartridge valve designed for high-performance hydraulic systems. This model features a unique configuration that includes six ports, with port 5 not utilized, allowing for versatile plumbing options. The valve operates under a maximum pressure of 5000 psi (350 bar) and can accommodate flow rates up to 20 gpm (80 L/min). It supports various spool configurations, enhancing its adaptability to different hydraulic applications. Key specifications include the requirement of a minimum pilot pressure of 145 psi (10 bar) for valve shifting and 290 psi (20 bar) for full shift at rated flow, ensuring precise control over the hydraulic operations. The valve's hardened spool and sleeve are engineered to provide low leakage rates and superior wear characteristics, contributing to the reliability and longevity of the system. The DDDGXCN incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This feature ensures smooth operation and consistent performance under varying conditions. The valve also has a specified installation torque range of 45 - 50 lbf ft (61 - 68 Nm), which helps in achieving optimal installation precision. Furthermore, this model uses Viton seals (part number: 990052006) for enhanced chemical resistance and durability under high temperatures and pressures. Its compact design with a hex size of 1-1/8 in. (28.6 mm) allows for easy integration into various hydraulic circuits without requiring extensive modifications. Overall, the Sun Hydraulics DDDGXCN is crafted to offer robust performance in demanding hydraulic applications where precision and reliability are paramount.

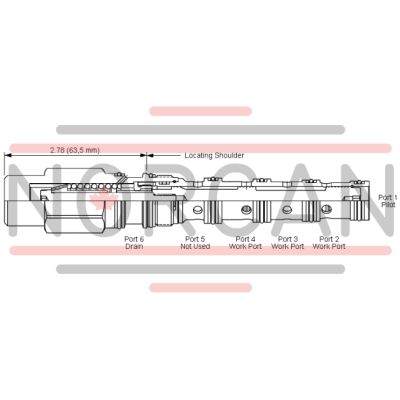

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 145 psi10 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
