SUN HYDRAULICS
DDDGXYV
$202.63 USD
- SUN HYDRAULICS
- Material:DDDGXYV
- Model:DDDG-XYV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDDGXYV (Material Number DDDGXYV) is a two-position, 3-way directional cartridge valve featuring a 6-port configuration where port 5 remains unused. This valve can be adapted with up to five different spool configurations, enhancing its versatility in various applications. Each spool type determines the capacity of these pilot-to-shift valves, which are designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports. The Sun Hydraulics DDDGXYV incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, crucial for maintaining system efficiency and longevity. This model benefits from Sun's floating style construction which significantly reduces the risk of internal parts binding\u2014a common issue resulting from excessive installation torque or variations in cavity/cartridge machining. The technical specifications include a flow capacity of 20 gpm (80 L/min), and it requires a minimum pilot pressure of 145 psi (10 bar) for valve shifting, with full shift at rated flow needing 290 psi (20 bar). The maximum valve leakage at operational conditions is specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additionally, the valve features a pilot volume displacement of .05 in\u00b3 (0.82 cc), and it must be installed with specific torque settings between 45 - 50 lbf.ft (61 - 68 Nm) to ensure optimal performance. This hydraulic valve is suitable for applications requiring precise control over fluid direction and pressure within hydraulic circuits, making it an essential component for systems demanding high reliability and performance under varying operational conditions.
The Sun Hydraulics DDDGXYV (Material Number DDDGXYV) is a two-position, 3-way directional cartridge valve featuring a 6-port configuration where port 5 remains unused. This valve can be adapted with up to five different spool configurations, enhancing its versatility in various applications. Each spool type determines the capacity of these pilot-to-shift valves, which are designed to handle a maximum operating pressure of 5000 psi (350 bar) across all ports. The Sun Hydraulics DDDGXYV incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, crucial for maintaining system efficiency and longevity. This model benefits from Sun's floating style construction which significantly reduces the risk of internal parts binding\u2014a common issue resulting from excessive installation torque or variations in cavity/cartridge machining. The technical specifications include a flow capacity of 20 gpm (80 L/min), and it requires a minimum pilot pressure of 145 psi (10 bar) for valve shifting, with full shift at rated flow needing 290 psi (20 bar). The maximum valve leakage at operational conditions is specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Additionally, the valve features a pilot volume displacement of .05 in\u00b3 (0.82 cc), and it must be installed with specific torque settings between 45 - 50 lbf.ft (61 - 68 Nm) to ensure optimal performance. This hydraulic valve is suitable for applications requiring precise control over fluid direction and pressure within hydraulic circuits, making it an essential component for systems demanding high reliability and performance under varying operational conditions.

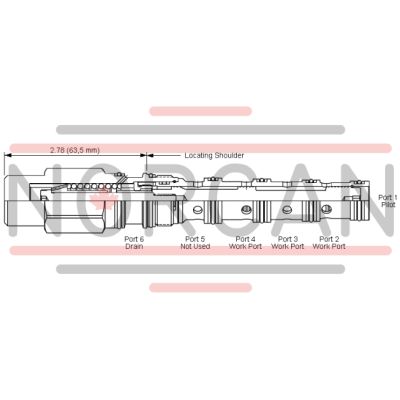

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 145 psi10 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
