SUN HYDRAULICS
DDDGXZN
$191.71 USD
- SUN HYDRAULICS
- Material:DDDGXZN
- Model:DDDG-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDDGXZN (Material Number: DDDGXZN) is a two-position, 3-way directional cartridge valve designed for advanced hydraulic systems requiring precise control and reliability. This model is part of the T52A cavity series and features a unique six-port configuration, although port 5 is typically not utilized. It can handle a maximum operating pressure of 5000 psi (350 bar) and supports flow capacities up to 20 gpm (80 L/min). The valve offers various spool configurations, which influence the pilot pressure required for shifting\u2014ranging from a minimum of 145 psi (10 bar) to fully shift at rated flow at 290 psi (20 bar). The DDDGXZN valve incorporates hardened spool and sleeve elements that ensure low leakage rates and superior wear characteristics, essential for maintaining efficiency in demanding applications. This model takes advantage of Sun\u2019s floating style construction, which reduces risks associated with internal parts binding due to installation torque or variations in cavity/cartridge machining. The design specifics include a maximum leakage rate at 110 SUS (24 cSt) of approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), highlighting its effectiveness in minimizing fluid loss. This valve's robust build includes a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 -50 lbf ft (61 -68 Nm). It also features pilot volume displacement of about .05 in\u00b3 (0.82 cc), making it suitable for applications where precise hydraulic control is critical. The use of Viton seals ensures compatibility with a range of fluids and enhances the durability under varying environmental conditions. Overall, the Sun Hydraulics DDDGXZN offers an optimal solution for systems requiring reliable directional control in a compact package.
The Sun Hydraulics DDDGXZN (Material Number: DDDGXZN) is a two-position, 3-way directional cartridge valve designed for advanced hydraulic systems requiring precise control and reliability. This model is part of the T52A cavity series and features a unique six-port configuration, although port 5 is typically not utilized. It can handle a maximum operating pressure of 5000 psi (350 bar) and supports flow capacities up to 20 gpm (80 L/min). The valve offers various spool configurations, which influence the pilot pressure required for shifting\u2014ranging from a minimum of 145 psi (10 bar) to fully shift at rated flow at 290 psi (20 bar). The DDDGXZN valve incorporates hardened spool and sleeve elements that ensure low leakage rates and superior wear characteristics, essential for maintaining efficiency in demanding applications. This model takes advantage of Sun\u2019s floating style construction, which reduces risks associated with internal parts binding due to installation torque or variations in cavity/cartridge machining. The design specifics include a maximum leakage rate at 110 SUS (24 cSt) of approximately 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), highlighting its effectiveness in minimizing fluid loss. This valve's robust build includes a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 -50 lbf ft (61 -68 Nm). It also features pilot volume displacement of about .05 in\u00b3 (0.82 cc), making it suitable for applications where precise hydraulic control is critical. The use of Viton seals ensures compatibility with a range of fluids and enhances the durability under varying environmental conditions. Overall, the Sun Hydraulics DDDGXZN offers an optimal solution for systems requiring reliable directional control in a compact package.

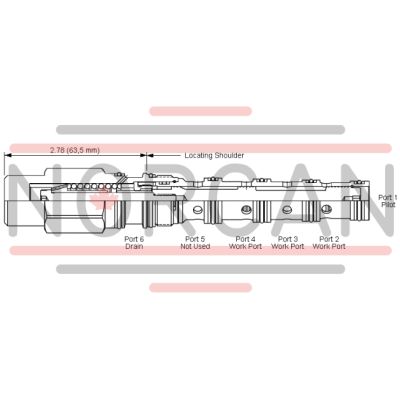

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 145 psi10 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-052-006 |
