SUN HYDRAULICS
DDFCXBV
$344.60 USD
- SUN HYDRAULICS
- Material:DDFCXBV
- Model:DDFC-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFCXBV (DDFCXBV) is a high-performance hydraulic valve designed for versatile applications in fluid power systems. This three-position, 4-way directional cartridge valve features a spring-centered design and includes six ports that can all withstand pressures up to 5000 psi (350 bar). It is configurable with various spool options depending on the specific requirements of the system, making it adaptable for different operational needs. The DDFCXBV model incorporates Sun Hydraulics' floating style construction which helps minimize internal parts binding. This is crucial in preventing issues that may arise from excessive installation torque or variations in cavity-cartridge machining. The hardened spool and sleeve enhance the valve's durability by providing low leakage rates and excellent wear characteristics, ensuring reliable performance over time. Key specifications include a maximum flow capacity of 40 gpm (160 L/min) and a minimum pilot pressure requirement of 200 psi (14 bar) for valve shifting. The maximum operating pressure of the valve remains consistent at 5000 psi (350 bar). Leakage performance is also optimized, with a maximum valve leakage at 110 SUS (24 cSt) listed as 10 in\u00b3/min at 1000 psi (160 cc/min at 70 bar). Additionally, the DDFCXBV has a pilot volume displacement of .11 in\u00b3 (1.8 cc), and it requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). For maintenance or replacement needs, Viton seal kits are available under part number: 990053006. This model uses T53A cavity series and has a hex size of 1\u00bc inches (31.8 mm), supporting ease of installation and compatibility with standard tools.
The Sun Hydraulics DDFCXBV (DDFCXBV) is a high-performance hydraulic valve designed for versatile applications in fluid power systems. This three-position, 4-way directional cartridge valve features a spring-centered design and includes six ports that can all withstand pressures up to 5000 psi (350 bar). It is configurable with various spool options depending on the specific requirements of the system, making it adaptable for different operational needs. The DDFCXBV model incorporates Sun Hydraulics' floating style construction which helps minimize internal parts binding. This is crucial in preventing issues that may arise from excessive installation torque or variations in cavity-cartridge machining. The hardened spool and sleeve enhance the valve's durability by providing low leakage rates and excellent wear characteristics, ensuring reliable performance over time. Key specifications include a maximum flow capacity of 40 gpm (160 L/min) and a minimum pilot pressure requirement of 200 psi (14 bar) for valve shifting. The maximum operating pressure of the valve remains consistent at 5000 psi (350 bar). Leakage performance is also optimized, with a maximum valve leakage at 110 SUS (24 cSt) listed as 10 in\u00b3/min at 1000 psi (160 cc/min at 70 bar). Additionally, the DDFCXBV has a pilot volume displacement of .11 in\u00b3 (1.8 cc), and it requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). For maintenance or replacement needs, Viton seal kits are available under part number: 990053006. This model uses T53A cavity series and has a hex size of 1\u00bc inches (31.8 mm), supporting ease of installation and compatibility with standard tools.

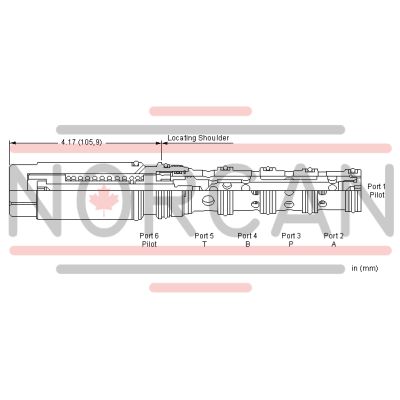

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 200 psi14 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi160 cc/min.@70 bar |
| Pilot Volume Displacement | .11 in³1,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-053-006 |
