SUN HYDRAULICS
DDFCXHV
$348.57 USD
- SUN HYDRAULICS
- Material:DDFCXHV
- Model:DDFC-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFCXHV (DDFCXHV) is a high-performance, three-position, 4-way directional cartridge valve, ideal for advanced hydraulic system applications. This model boasts a robust design with hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. Each of the six ports, including the x and y pilot ports (port 1 and port 6), can handle up to 5000 psi or 350 bar, making it suitable for high-pressure operations. The DDFCXHV utilizes a spring-centered mechanism allowing for reliable return to the neutral position when the actuating force is removed. This feature enhances the operational safety and control precision in hydraulic systems. The valve's capacity varies based on the spool type chosen, with a maximum flow capacity of up to 40 gpm or 160 L/min. It requires a minimum pilot pressure of 200 psi or 14 bar to shift effectively. One notable feature is its incorporation of Sun's floating style construction which minimizes internal part binding due to excessive installation torque or variations in cavity/cartridge machining. The valve offers an impressive maximum operating pressure limit of 5000 psi or 350 bar and demonstrates maximum leakage at only 10 in\u00b3/min at 1000 psi (approximately160 cc/min at 70 bar). The pilot volume displacement stands at approximately .11 in\u00b3 or 1.8 cc. For installation, it requires a hex size of 1\u00bc inches (31.8 mm) and an installation torque between 150 -160 lbf ft (203 -217 Nm). Additionally, it supports Viton seals for enhanced performance under varying environmental conditions. This makes Sun Hydraulics' DDFCXHV an excellent choice for those seeking a durable and reliable solution in complex hydraulic systems.
The Sun Hydraulics DDFCXHV (DDFCXHV) is a high-performance, three-position, 4-way directional cartridge valve, ideal for advanced hydraulic system applications. This model boasts a robust design with hardened spool and sleeve that ensure low leakage rates and superior wear characteristics. Each of the six ports, including the x and y pilot ports (port 1 and port 6), can handle up to 5000 psi or 350 bar, making it suitable for high-pressure operations. The DDFCXHV utilizes a spring-centered mechanism allowing for reliable return to the neutral position when the actuating force is removed. This feature enhances the operational safety and control precision in hydraulic systems. The valve's capacity varies based on the spool type chosen, with a maximum flow capacity of up to 40 gpm or 160 L/min. It requires a minimum pilot pressure of 200 psi or 14 bar to shift effectively. One notable feature is its incorporation of Sun's floating style construction which minimizes internal part binding due to excessive installation torque or variations in cavity/cartridge machining. The valve offers an impressive maximum operating pressure limit of 5000 psi or 350 bar and demonstrates maximum leakage at only 10 in\u00b3/min at 1000 psi (approximately160 cc/min at 70 bar). The pilot volume displacement stands at approximately .11 in\u00b3 or 1.8 cc. For installation, it requires a hex size of 1\u00bc inches (31.8 mm) and an installation torque between 150 -160 lbf ft (203 -217 Nm). Additionally, it supports Viton seals for enhanced performance under varying environmental conditions. This makes Sun Hydraulics' DDFCXHV an excellent choice for those seeking a durable and reliable solution in complex hydraulic systems.

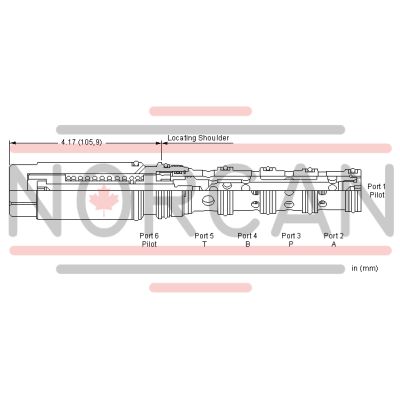

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 200 psi14 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi160 cc/min.@70 bar |
| Pilot Volume Displacement | .11 in³1,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-053-006 |
