SUN HYDRAULICS
DDFCXWN
$337.66 USD
- SUN HYDRAULICS
- Material:DDFCXWN
- Model:DDFC-XWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFCXWN (DDFCXWN) is a three-position, 4-way directional cartridge valve designed for high-pressure hydraulic systems. This spring-centered, 6-port directional valve features a range of spool options that can be tailored to meet specific application needs. The valve operates with a maximum capacity of 40 gpm (160 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). Each port, including the x and y pilot ports (ports 1 and 6), supports this high-pressure rating. Key specifications include a minimum pilot pressure requirement of 200 psi (14 bar) to shift the valve, which ensures reliable operation under varying conditions. The valve's design incorporates hardened spool and sleeve components that not only reduce leakage but also enhance wear characteristics for prolonged service life. Sun Hydraulics has engineered this model with their unique floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The DDFCXWN also features a maximum valve leakage rate at 110 SUS (24 cSt) of 10 in\u00b3/min at 1000 psi (160 cc/min at 70 bar), demonstrating its efficiency in maintaining system integrity. Installation specifications include a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). This model uses Viton seals for enhanced performance under various environmental conditions. Overall, the Sun Hydraulics DDFCXWN is built to offer robust performance and reliability for applications requiring precise control over hydraulic flow and pressure, all while maintaining minimal leakage and high durability standards.
The Sun Hydraulics DDFCXWN (DDFCXWN) is a three-position, 4-way directional cartridge valve designed for high-pressure hydraulic systems. This spring-centered, 6-port directional valve features a range of spool options that can be tailored to meet specific application needs. The valve operates with a maximum capacity of 40 gpm (160 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). Each port, including the x and y pilot ports (ports 1 and 6), supports this high-pressure rating. Key specifications include a minimum pilot pressure requirement of 200 psi (14 bar) to shift the valve, which ensures reliable operation under varying conditions. The valve's design incorporates hardened spool and sleeve components that not only reduce leakage but also enhance wear characteristics for prolonged service life. Sun Hydraulics has engineered this model with their unique floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The DDFCXWN also features a maximum valve leakage rate at 110 SUS (24 cSt) of 10 in\u00b3/min at 1000 psi (160 cc/min at 70 bar), demonstrating its efficiency in maintaining system integrity. Installation specifications include a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). This model uses Viton seals for enhanced performance under various environmental conditions. Overall, the Sun Hydraulics DDFCXWN is built to offer robust performance and reliability for applications requiring precise control over hydraulic flow and pressure, all while maintaining minimal leakage and high durability standards.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.

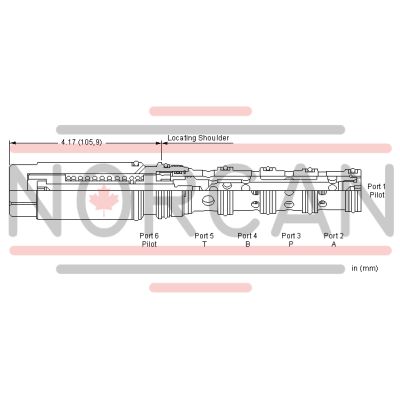

- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 1 and port 6).
- Leakage listed in technical data is for each path, including pilot paths.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 200 psi14 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi160 cc/min.@70 bar |
| Pilot Volume Displacement | .11 in³1,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-053-006 |
