SUN HYDRAULICS
DDFGXCN
$314.02 USD
- SUN HYDRAULICS
- Material:DDFGXCN
- Model:DDFG-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXCN (DDFGXCN) is a high-performance two-position, 3-way directional cartridge valve, notable for its robust design and versatile applications in hydraulic systems. This model features six ports with the fifth port unused, and all ports can withstand pressures up to 5000 psi (350 bar). The valve is specifically engineered to accommodate five different spool configurations, which allows it to be adapted to various operational requirements. The supply port of this valve is designated as port 3. Key capabilities of the DDFGXCN include a maximum flow capacity of 40 gpm (160 L/min), with operational reliability supported by a minimum pilot pressure requirement of 160 psi (11 bar) for valve shifting and 290 psi (20 bar) for full shifting at rated flow. This model ensures minimal leakage, specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which contributes to efficient system performance. Durability is enhanced by the hardened spool and sleeve which not only reduce leakage rates but also provide excellent wear characteristics. Additionally, Sun Hydraulics incorporates its floating style construction into this model, minimizing internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Installation specifics include a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). The DDFGXCN weighs approximately 2.90 lbs (1.30 kg). For maintenance or repair, a Viton seal kit (part number: 990053006) is available for this model. This valve's design and construction make it suitable for applications requiring reliable directional control in hydraulic circuits under high pressure conditions.
The Sun Hydraulics DDFGXCN (DDFGXCN) is a high-performance two-position, 3-way directional cartridge valve, notable for its robust design and versatile applications in hydraulic systems. This model features six ports with the fifth port unused, and all ports can withstand pressures up to 5000 psi (350 bar). The valve is specifically engineered to accommodate five different spool configurations, which allows it to be adapted to various operational requirements. The supply port of this valve is designated as port 3. Key capabilities of the DDFGXCN include a maximum flow capacity of 40 gpm (160 L/min), with operational reliability supported by a minimum pilot pressure requirement of 160 psi (11 bar) for valve shifting and 290 psi (20 bar) for full shifting at rated flow. This model ensures minimal leakage, specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), which contributes to efficient system performance. Durability is enhanced by the hardened spool and sleeve which not only reduce leakage rates but also provide excellent wear characteristics. Additionally, Sun Hydraulics incorporates its floating style construction into this model, minimizing internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Installation specifics include a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm). The DDFGXCN weighs approximately 2.90 lbs (1.30 kg). For maintenance or repair, a Viton seal kit (part number: 990053006) is available for this model. This valve's design and construction make it suitable for applications requiring reliable directional control in hydraulic circuits under high pressure conditions.

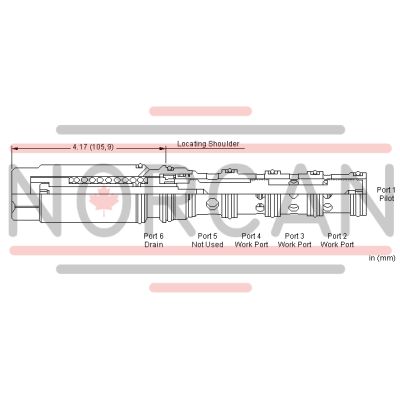

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
